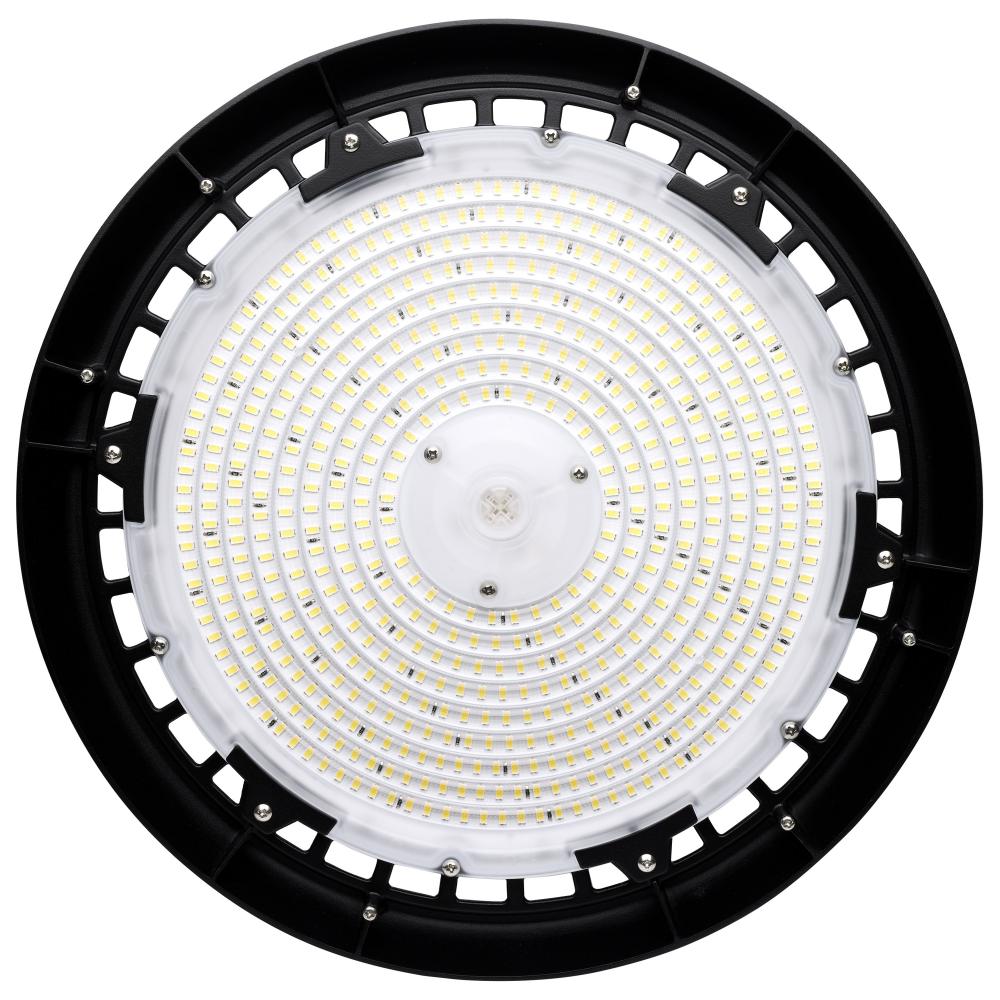

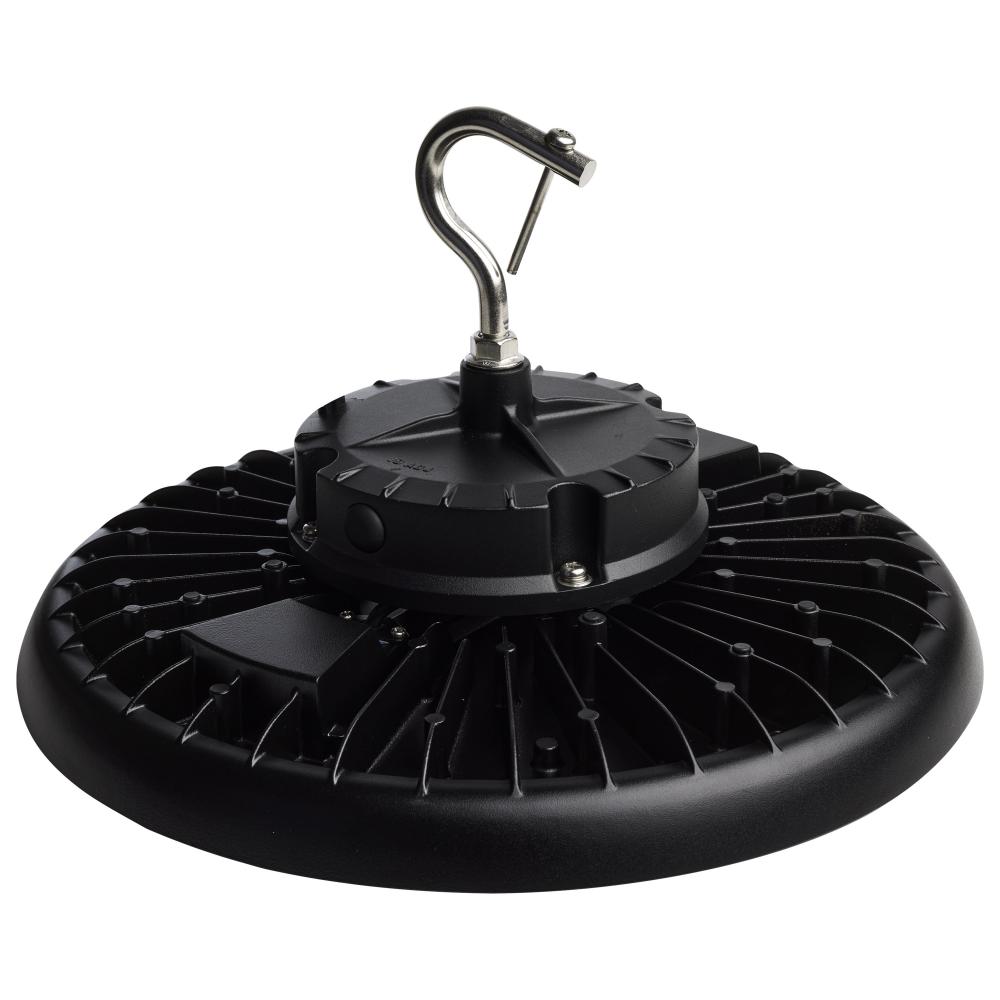

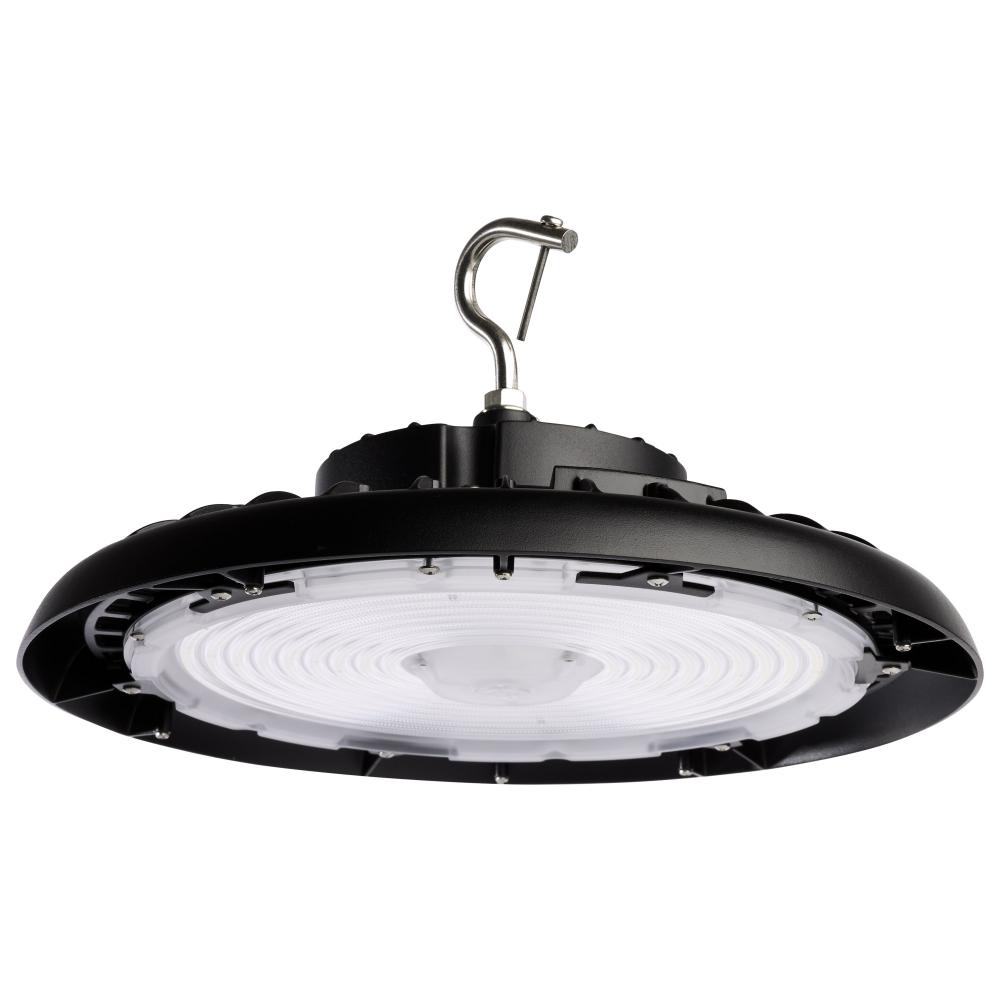

240 Watt UFO LED High Bay; 4000K; 33360 Lumens; 120-277 Volt; Black Finish (A66R8)
240 Watt UFO LED High Bay; 4000K; 33360 Lumens; 120-277 Volt; Black Finish
Product Specification
Item #
A66R8
Dimensions
Height: 8.11"
Width: 13.39"
Additional product details
Internal #
A66R8
Category
Utility
Subcategory
Other Utility
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Hi-Bay
Sub Category
UFO
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Cool White
Diameter
13.39
Dimmable
Yes-Dimmable
Each Height
4.92
Each Length
14.17
Each Width
14.17
Lumens
33360L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
72
Amps
2.00-0.866A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
0.5717
Each Quantity
1
Efficacy
139.00 LPW
FCC Compliant
Yes
Feature 1

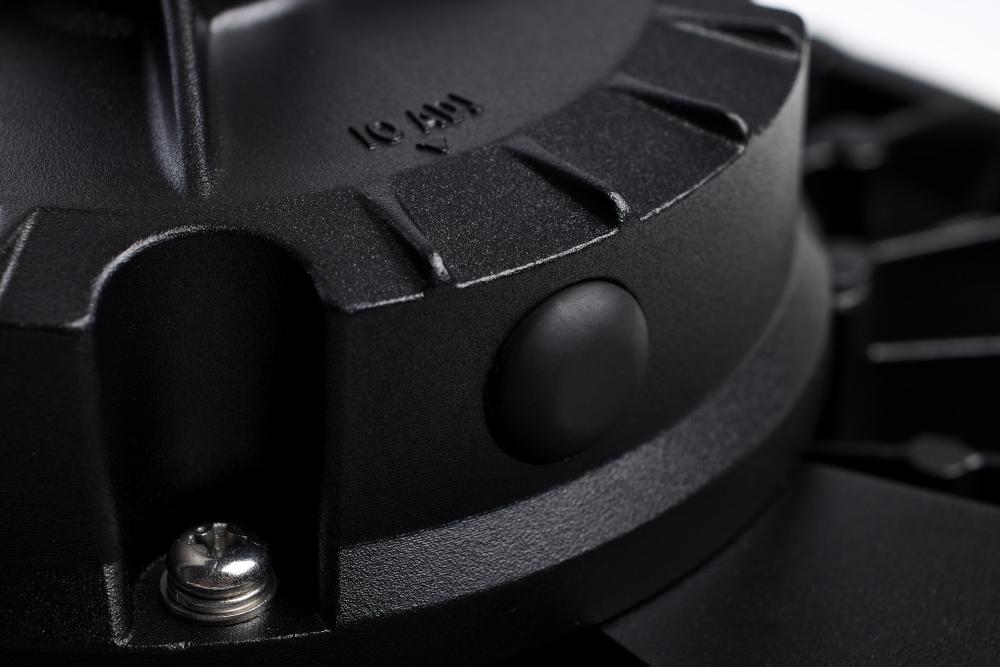

Integrated Sensor Port
Feature 2
IP65
Feature 3
6KV Surge Protection
Feature 4
6 Foot Whip
Feature 5
90 degree Beam Angle
Feature 6
50,000 Hours
Feature 7
5 Year Warranty
Finish Family
Black
Has Emergency Battery
No
HID Equiv
700W
Impact Rating (IK)
IK08
Incandescent Equivalent
2000W
Includes

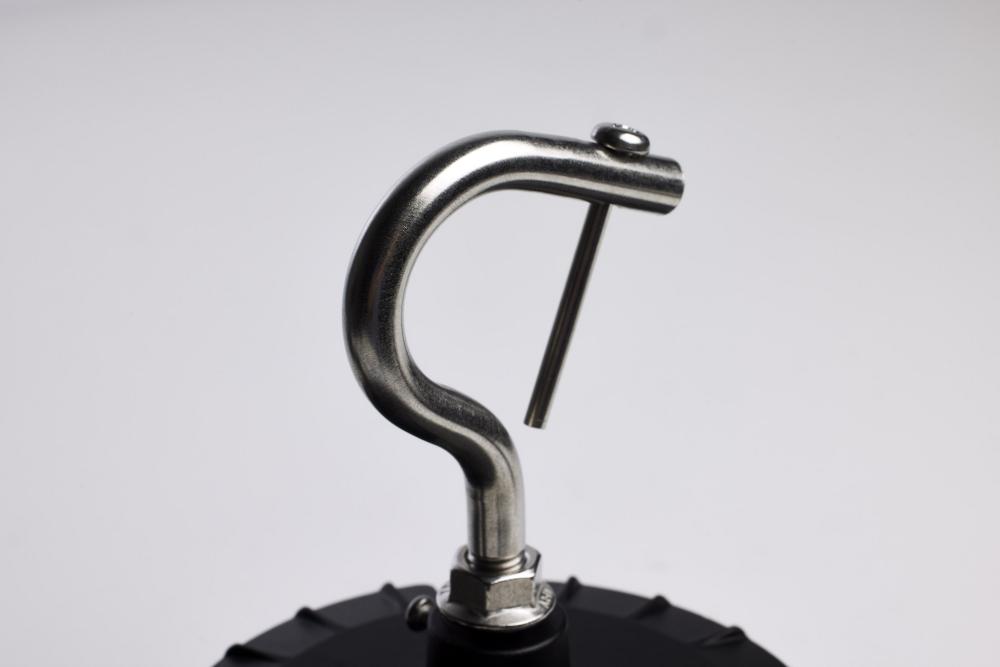

Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor
Indoor
Installation Notes
Mounting Height: Up to 35 feet
IP Rating
IP65
JA8 Compliant
No

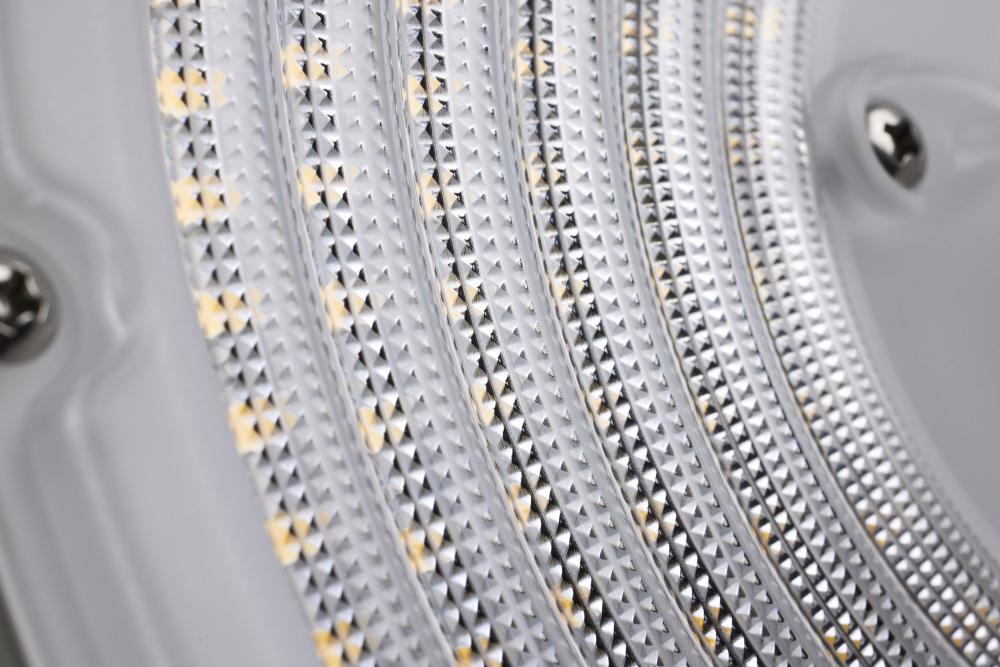

Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-787R2 240-watt, 4000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protecti
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Kraft Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
R9 Value
13
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 240-watt, 4000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire g
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
LED UFO HIGHBAY 240W/4000K
Temperature (CCT)
4000K
Title 20 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
6.42
