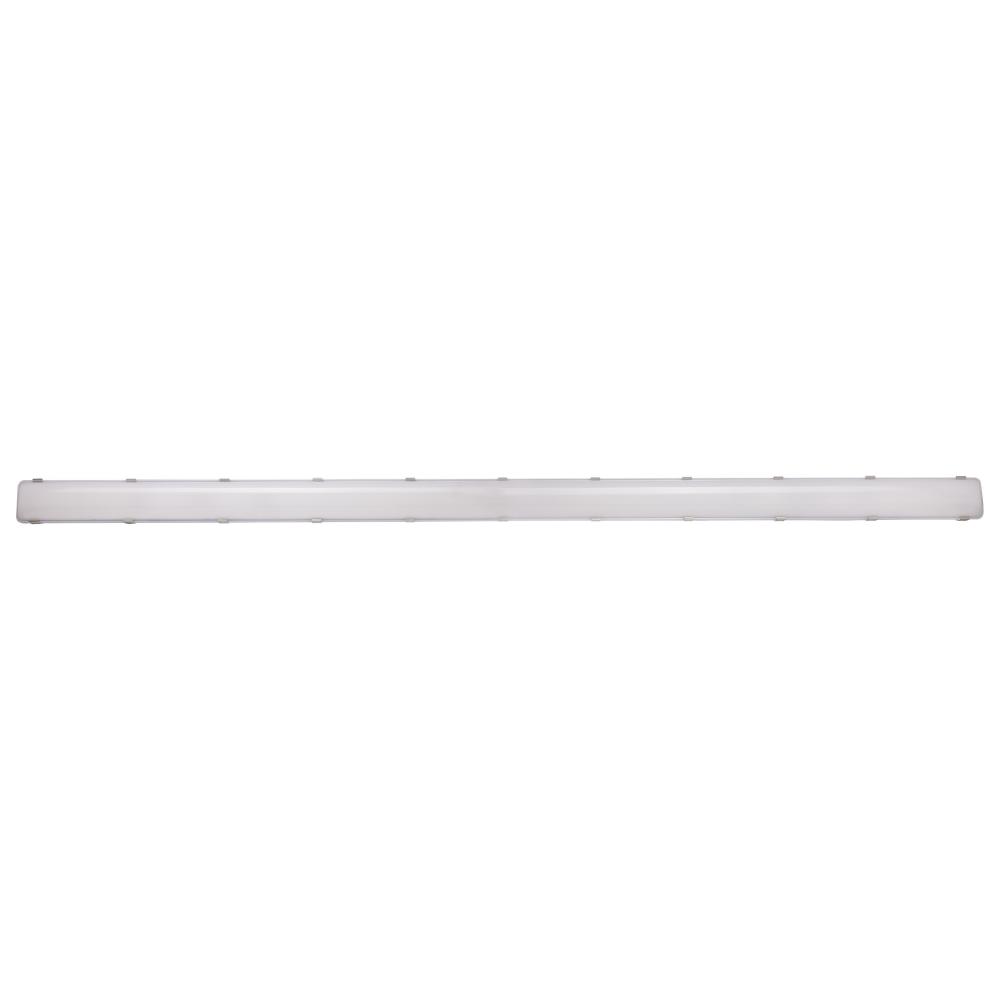

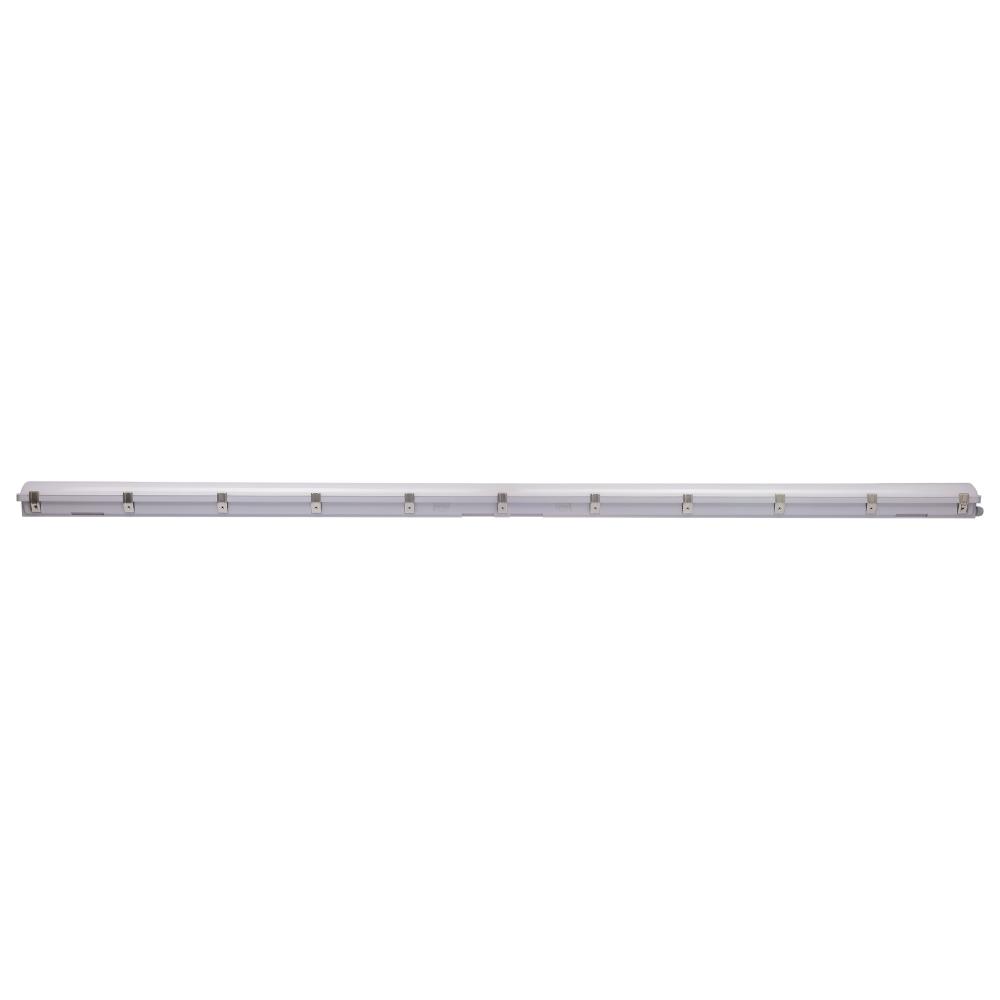

8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 (A66T8)
8 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated; 120V-347V
Product Specification
Item #
A66T8
Dimensions
Height: 3.46"
Width: 4.33"
Additional product details
Internal #
A66T8
Category
Utility
Subcategory
Other Utility
Finish
Gray
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Linear
Sub Category
Vapor Proof
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
4.33
Each Length
96.45999999999999
Each Width
5.12
Length
94.48999999999999
Lumens
6400L-9360L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.417-0.144/0.500-0.173/0.600-0.207A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
CRI
80
Dimmable Function
0-10V; Integrated Sensor
DLC Classification
Standard; Standard
DLC Primary Use
Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
1.2375
Each Quantity
1
Efficacy
128.00/131.33/130.00 LPW
FCC Compliant
Yes
Feature 1
120-347 Voltage - FOR USE IN CANADA
Feature 10
Suspension kit (sold separately)
Feature 2
Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
Feature 3
IP65 and IK08 Rated
Feature 4
CCT and Wattage Selectable
Feature 5
2KV built-in Surge Protection
Feature 6
Non-corrosive (PC) polycarbonate housing
Feature 7
0-10V Dimmable
Feature 8

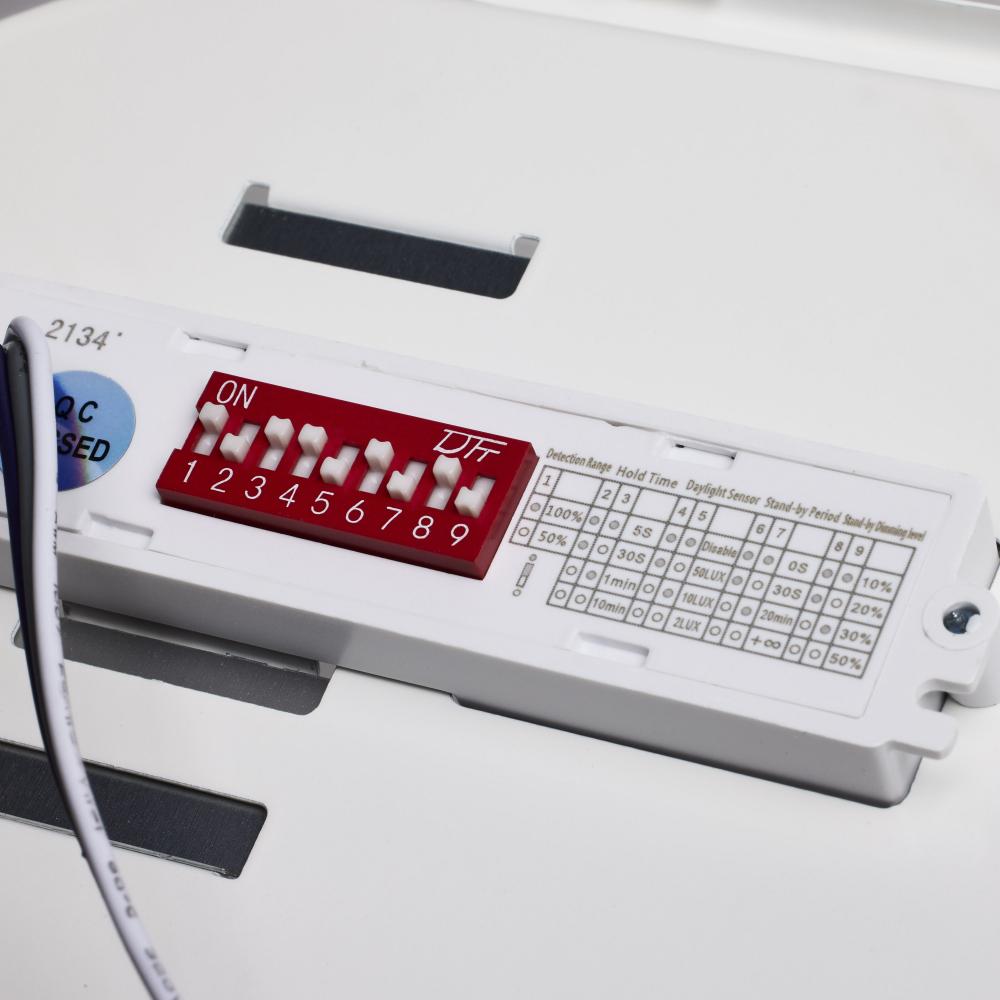

Integrated Microwave Sensor
Feature 9
5 Year Warranty
Finish Family
Gray
Fixture shape
Linear
Flicker Free
No
Has Driver
Yes
HID Equiv
150W-200W
Impact Rating (IK)
IK08
Incandescent Equivalent
400W-500W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Opaque
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-825R1 wattage selectable, 8 foot vapor proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT and wattage selectable and wet location rated, with 2KV s
Material
Plastic
Mounting Procedure
Ceiling/Wall
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Pack Type
Box
Photocell
Integrated Microwave Sensor
Power Factor
>0.96
Quantity In Pack
1
Rated For Vapor Tight Fixture
Yes
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
8' LINEAR VAPOR PROOF W/SENSOR
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
14.20%
Wattage Selectable
Yes
Weight Lb.
12.13
