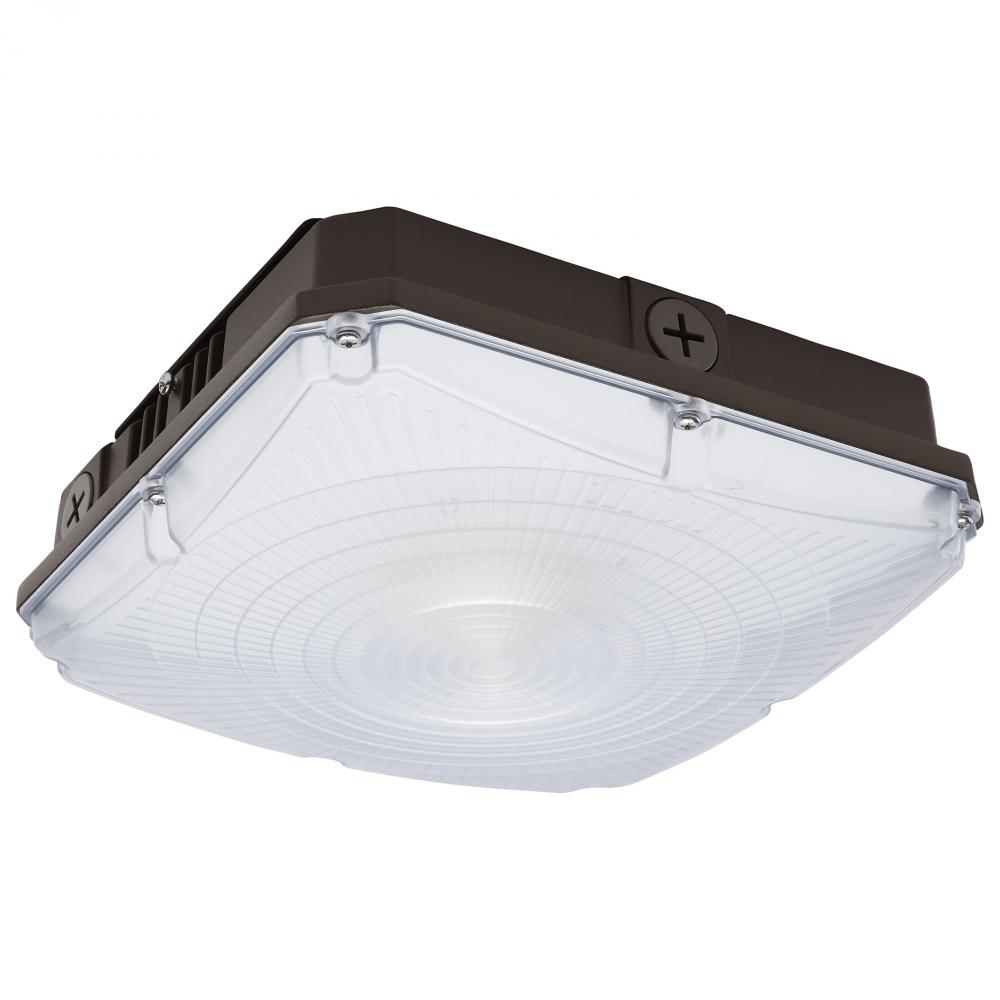

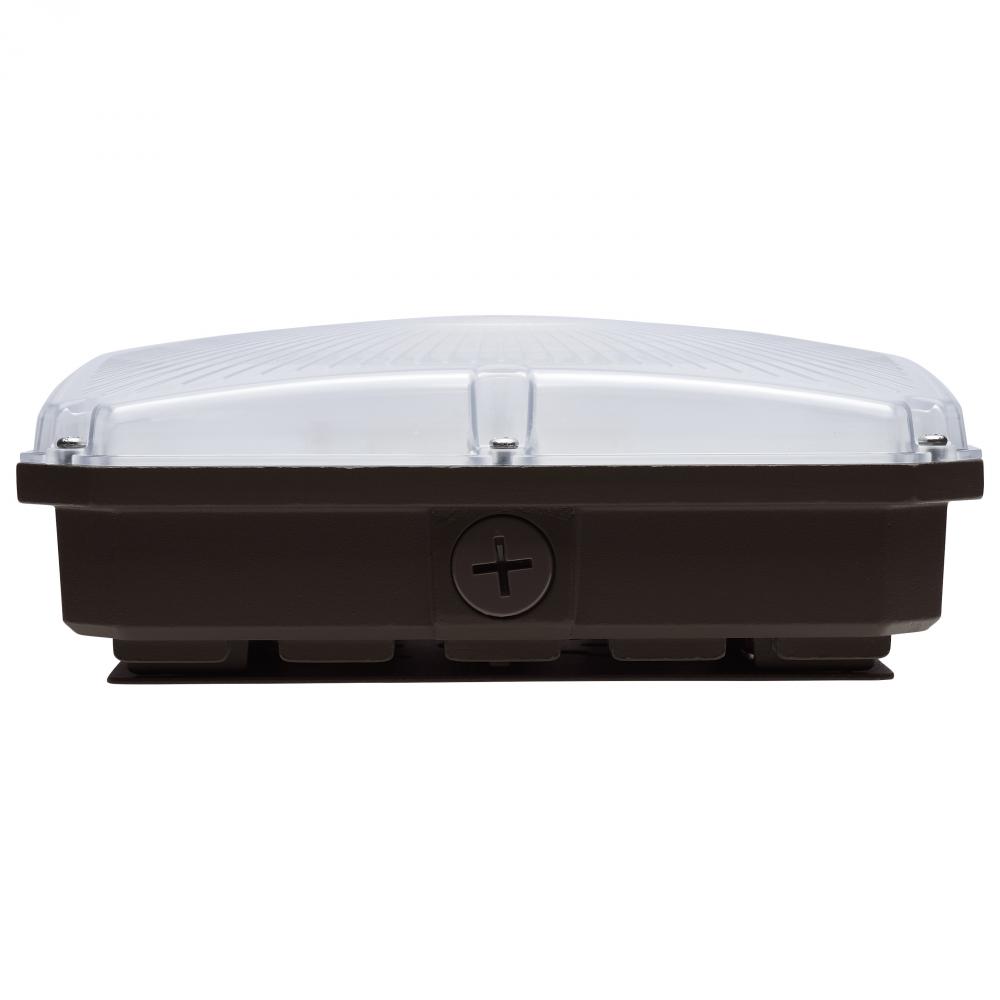

8.5 Inch LED Field Selectable Canopy Fixture With Sensor; 25/30/40 Watts; 3K/4K/5K CCT; 120-277 (A99CT)
$259.00
Call For Price
Enlarge Image
Add to Cart
Description:
8.5 Inch LED Field Selectable Canopy Fixture With Sensor; 25/30/40 Watts; 3K/4K/5K CCT; 120-277 Range Voltage
Availability:
  • Manufacturer has 521 items available.
Required Components:

Optional Accessory:

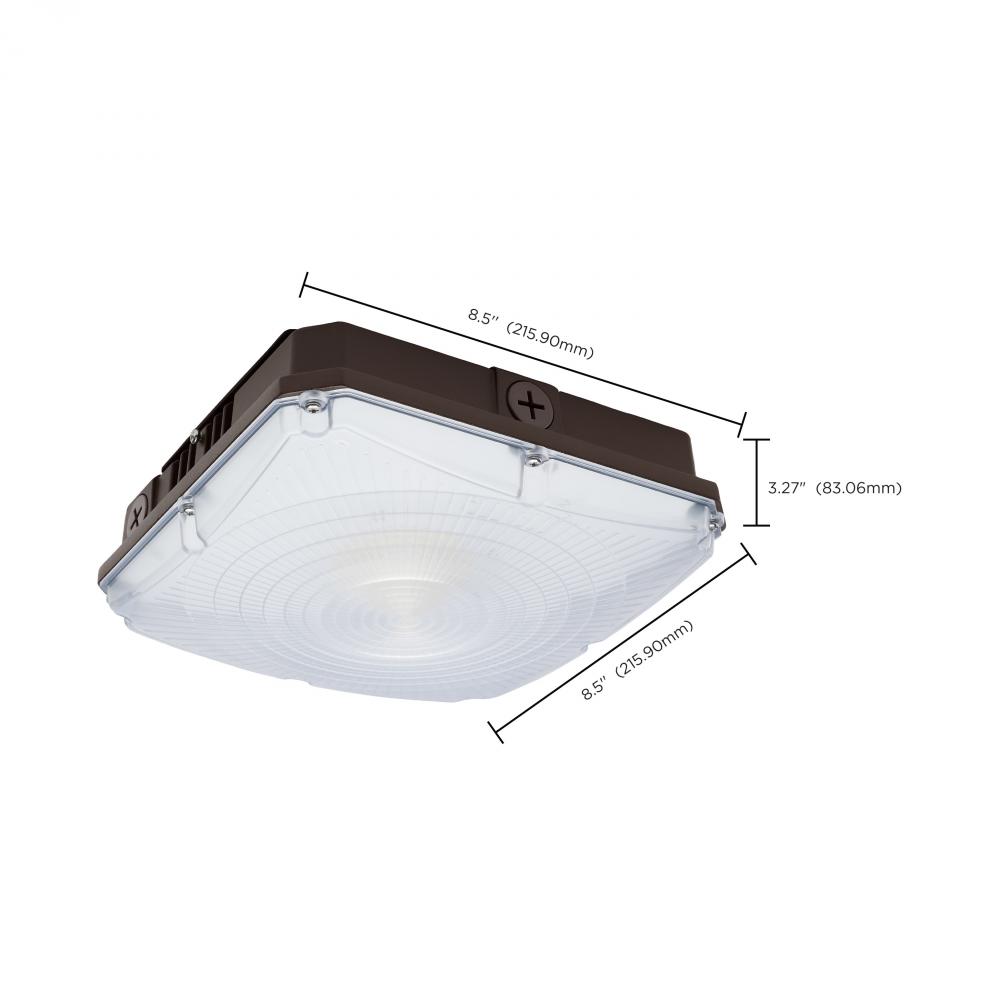

Dimensions:
right arrow Height: 3.27"
right arrow Width: 8.50"
Additional Details:
right arrow Finish: Bronze
right arrow Category: Surface Mount
right arrow Sub Category: Canopy Fixture
right arrow Style: Utility
right arrow Additional Info: UV stabilized powder coated finish
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Soft White to Natural Light
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 9.25
right arrow Each Length: 9.06
right arrow Each Width: 3.62
right arrow Length: 8.5

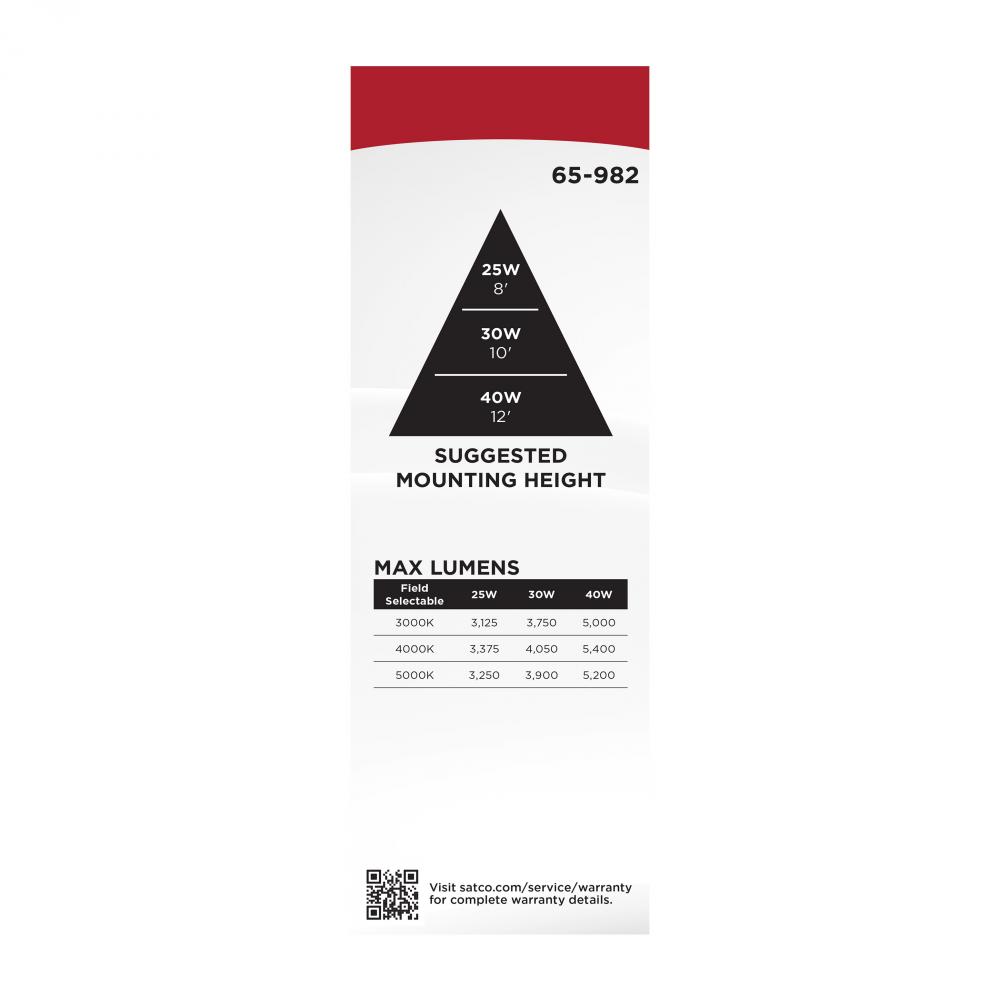

right arrow Lumens: 3125L-5400L
right arrow Tariff Code: 9405.11.6020
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Amps: 0.210-0.090/0.250-0.108/0.333-0.144A
right arrow ANSI Base: Integrated
right arrow Beam Angle: 150
right arrow B_U_G_Rating: B2-U3-G2
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale

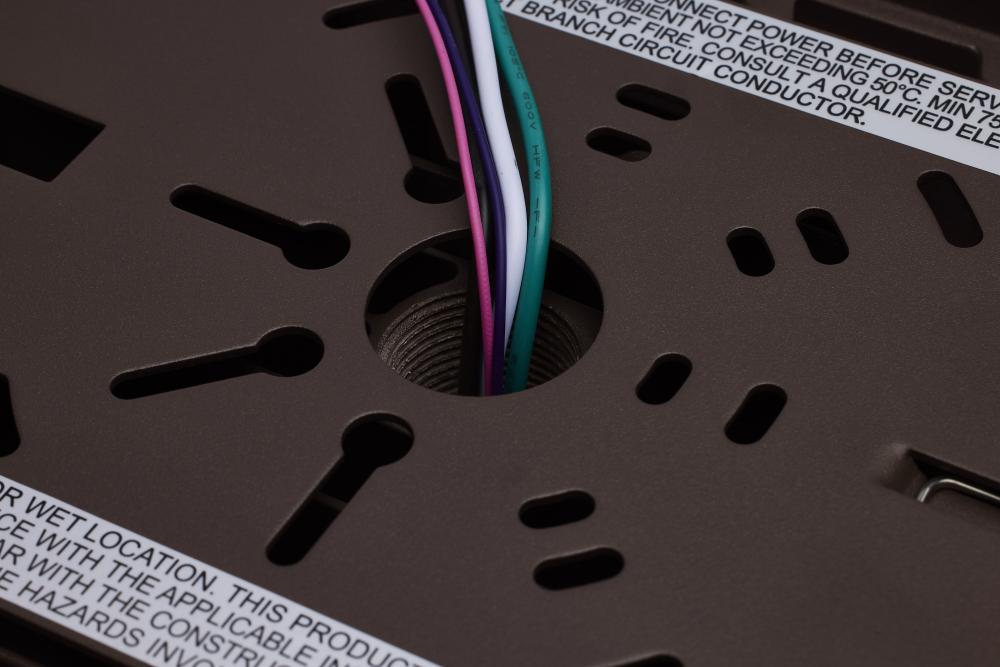

right arrow Connection: Direct Wired
right arrow Country Of Origin: Vietnam
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimmable Function: 0-10V Dimming
right arrow DLC Classification: Premium

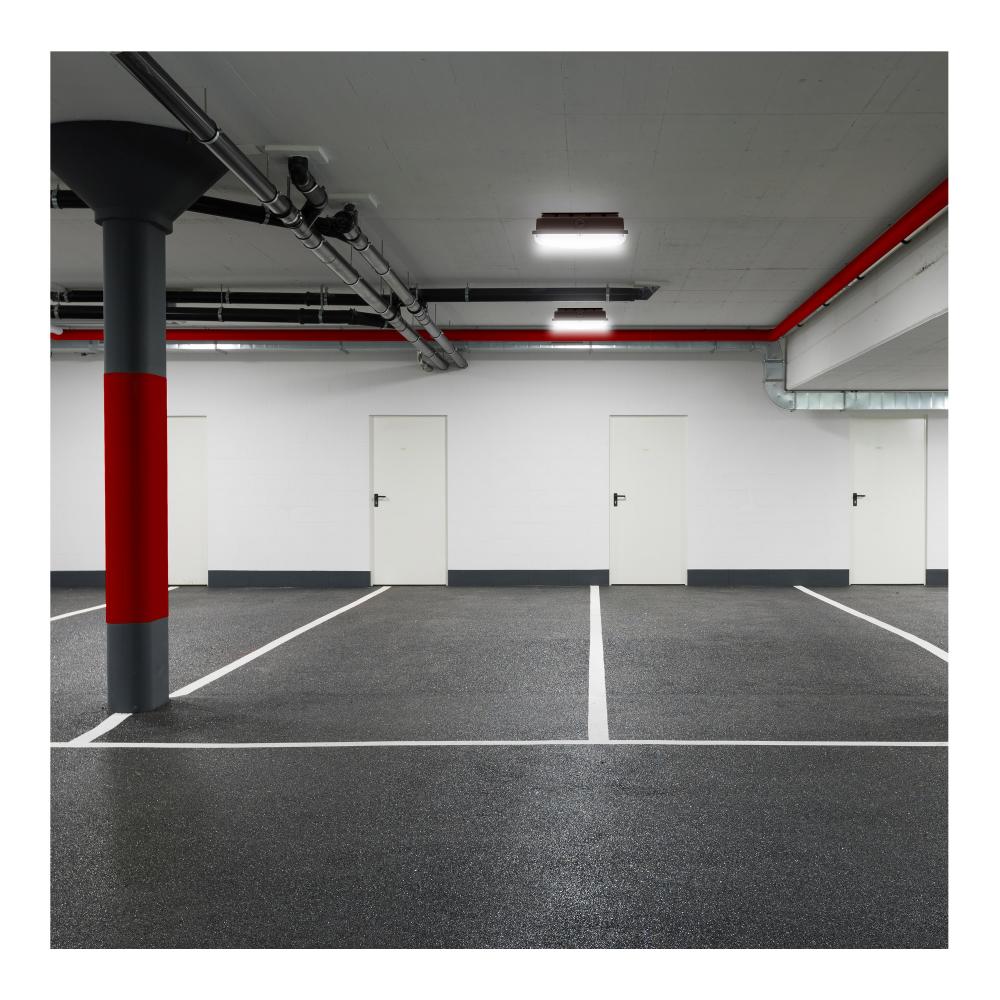

right arrow DLC Primary Use: Parking Garage Luminaires
right arrow Each Cube: 0.1756
right arrow Each Quantity: 1
right arrow Efficacy: 125.00/130.00/135.00 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: CCT and Wattage Selectable
right arrow Feature 2: Ceiling or Pendant Mounting

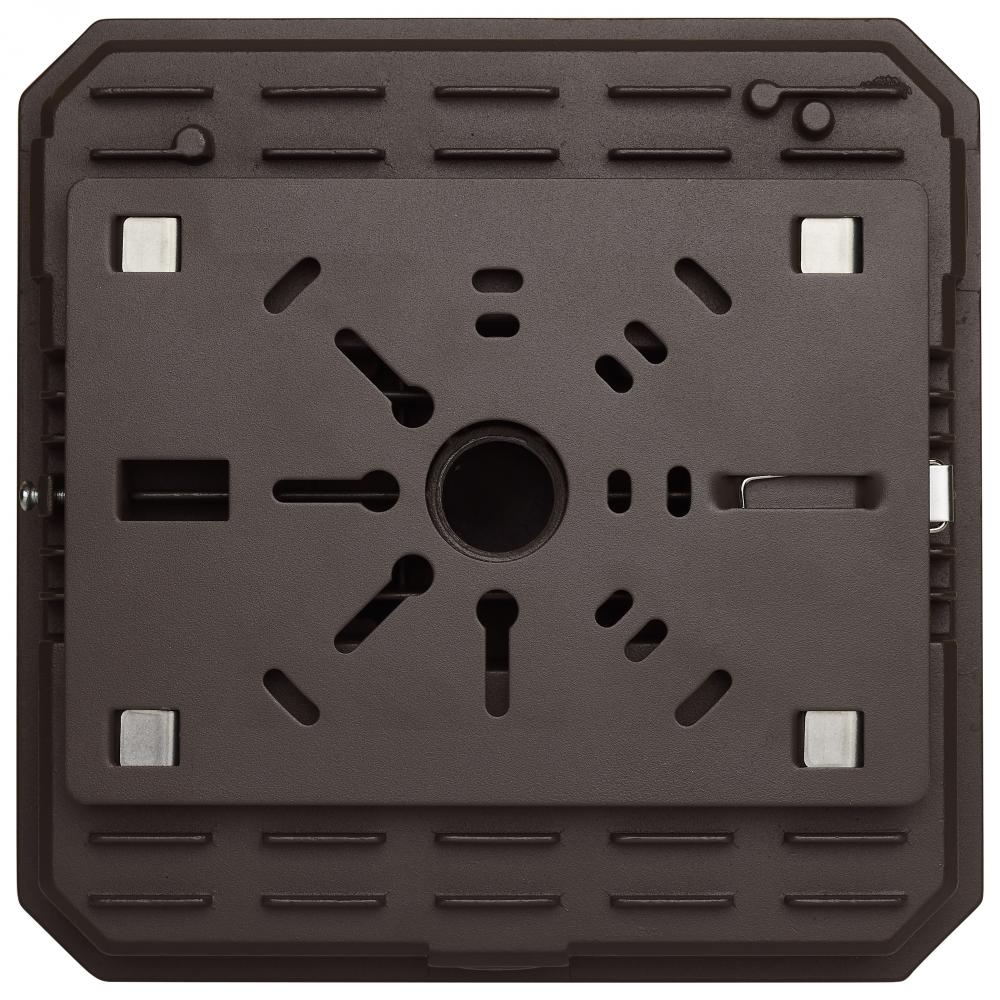

right arrow Feature 3: Hinged Universal Mounting Bracket
right arrow Feature 4: 6KV Surge Protection
right arrow Feature 5: IP65 and IK08 Vandal Resistant
right arrow Feature 6: Wet location rated
right arrow Feature 7: 50,000 Hour Functional Life
right arrow Feature 8: 8.5 Inch Square with Integrated Microwave Sensor
right arrow Feature 9: B2-U3-G1 Rating
right arrow Finish Family: Bronze
right arrow Fixture shape: Square
right arrow HID Equiv: 52W/71W/90W
right arrow Impact Rating (IK): IK08
right arrow Incandescent Equivalent: 150W/250W
right arrow Indoor Outdoor: Outdoor
right arrow IP Rating: IP65
right arrow Lens Finish: Clear
right arrow Lens Material: Polycarbonate (PC)
right arrow Long Description: SATCO|NUVO's 65-982 Field Selectable 8.5-inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. It also features an integ
right arrow Material: Die-Cast Aluminum
right arrow Mounting Procedure: Ceiling;Pendant Hanging Surface
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -30C (-22F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Color Box
right arrow Photocell: Has Motion Sensor
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO|NUVO's Field Selectable square canopy fixtures are an ideal choice for multiple applications. These fixtures offer the flexibility to choose from three wattage and three CCT options during installation, with some models featuring an integrated mi
right arrow Safety Listing: cULus - Listed
right arrow SDS class: LED_Fixture
right arrow Sensor Type: Microwave
right arrow Short Description: 8.5" LED CANOPY W/SENSOR
right arrow Temperature (CCT): 3000K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Total Harmonic Distortion: 10.20%
right arrow Wattage Selectable: Yes
right arrow Weight Lb.: 3.35
right arrow Standard Category: Specialty Items
right arrow Standard Subcategory: Canopies
right arrow Standard Option: LED , Prop 65 prop65.png
