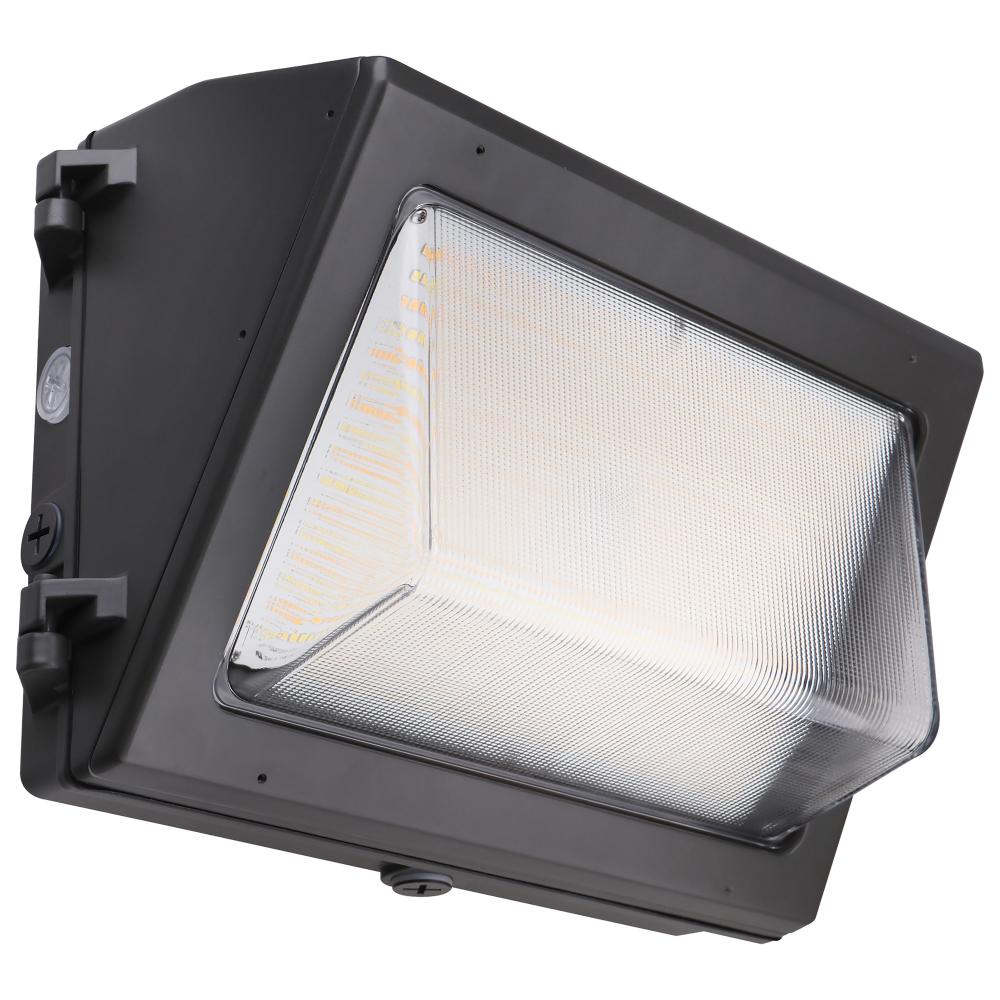

Emergency Architectural LED Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable (A3636)
Emergency Architectural LED Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt
Product Specification
Item #
A3636
Dimensions
Height: 9.35"
Width: 13.80"
Additional product details
Internal #
A3636
Category
Exterior
, Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
Bronze
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Wall Pack
Sub Category
Standard
Style
Traditional
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
9.84
Each Length
15.63
Each Width
11.69
Lumens
4060L-8640L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.242-0.105/0.333-0.144/0.500-0.217A
ANSI Base
Integrated
BAA Compliant
No
Battery Chemistry
Lithium-ion (Li-ion)
Beam Angle
110
B_U_G_Rating
B1-U4-G5
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
1.0405
Each Quantity
1
Efficacy
140.00/158.75/144.00 LPW
FCC Compliant
Yes
Feature 1
Maintenance free - no bulb to change
Feature 10
Consistent, even light distribution
Feature 2
Integrated By-Passable Photocell
Feature 3
Built-in surge protection - 4KV
Feature 4
Wattage Selectable 29W/40W/60W
Feature 5
50,000 Hours Long Life
Feature 6
DLC Premium
Feature 7
IP65 Rugged, All Weather Durability
Feature 8
CCT Selectable 3000K/4000K/5000K
Feature 9
Battery Mode 16W/1120 Lumens/90 min. Run Time
Finish Family
Bronze
Fixture shape
Rectangle
Has Emergency Battery
Yes
HID Equiv
75W-175W
Incandescent Equivalent
200W-500W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Material
Glass
Long Description
Introducing 65-754, SATCO|NUVO's new CCT and Wattage selectable wall pack with integrated bypassable photocell and emergency battery backup. This cULus certified wall pack is offered in a traditional style with 29W/40W/60W wattage configurations, CCT s
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Box
Photocell
Yes - Bypassable
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells and emergency battery backup modes. These cULus certified wall packs are offered in both a traditional and semi-cutoff style in two wattage config
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
EM WALL PACK CCT & WATT ADJ
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
9.5
