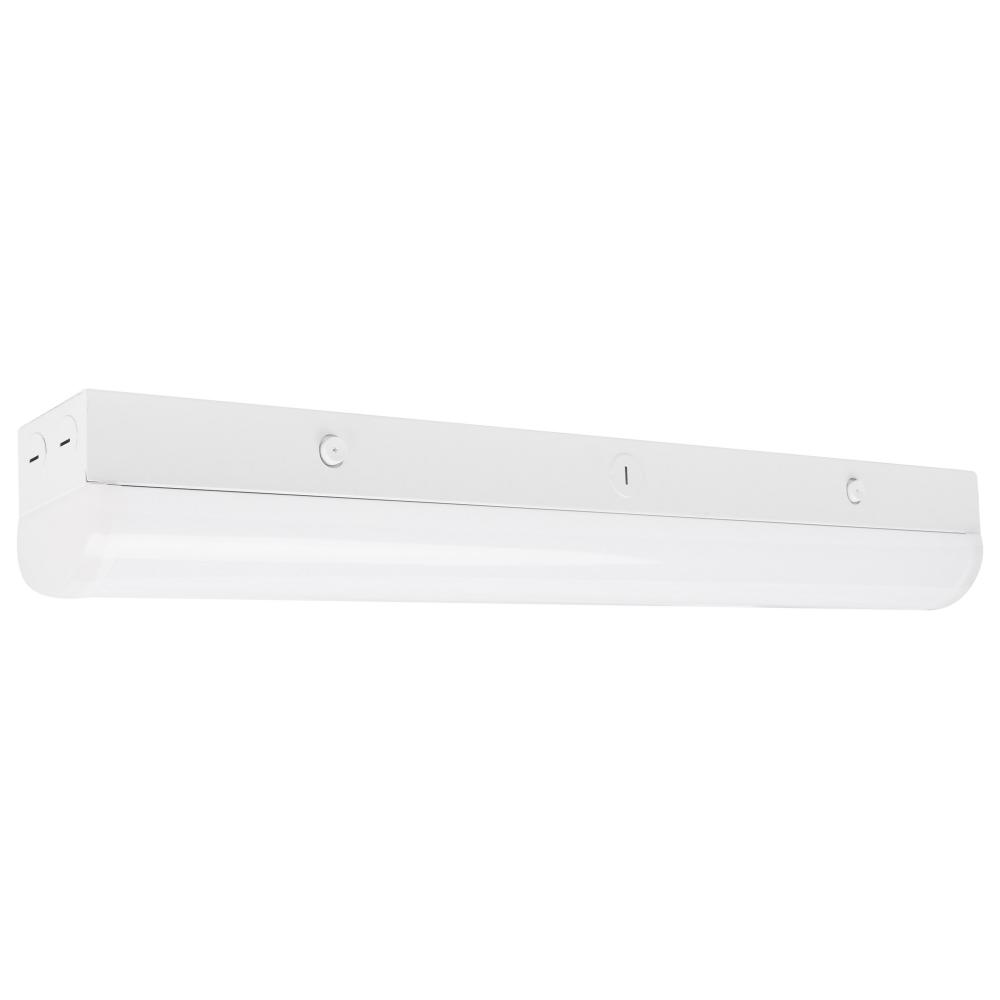

LED 2 ft.; Linear Strip Light; 20W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor (A362F)
LED 2 ft.; Linear Strip Light; 20W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor
Product Specification
Item #
A362F
Dimensions
Height: 3.27"
Width: 2.95"
Additional product details
Internal #
A362F
Category
Undercabinet
Subcategory
Strip Lights
Finish
White
Option
LED
, Prop 65
Lumens
2601-3000
Kelvin
5501-6000
Category
Linear Strip
Sub Category
Strip Fixture
Style
Utility
Additional Info
EM Mode 4W/90 Min run time. Other DLC Listings: S-MU6FZ4, Standard, Direct Linear Ambient Luminaires.
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Neutral White to Daylight
Dimmable
Yes-Dimmable
Each Height
5.31
Each Length
26.1
Each Width
5.2
Length
24
Lumens
2735L-2830L
Tariff Code
9405.11.6010
Warranty
5 Year Limited - Fixtures
Amps
0.200-0.072A
ANSI Base
Integrated
Beam Angle
120
B_U_G_Rating
B1-U3-G1
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming
DLC Classification
Premium; Standard
DLC Primary Use
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires
Each Cube
0.4171
Each Quantity
1
Efficacy
136.75/139.13/141.50 LPW
FCC Compliant
Yes
Feature 1
Flicker Free Driver
Feature 2
CCT Selectable (3500K/4000K/5000K)
Feature 3

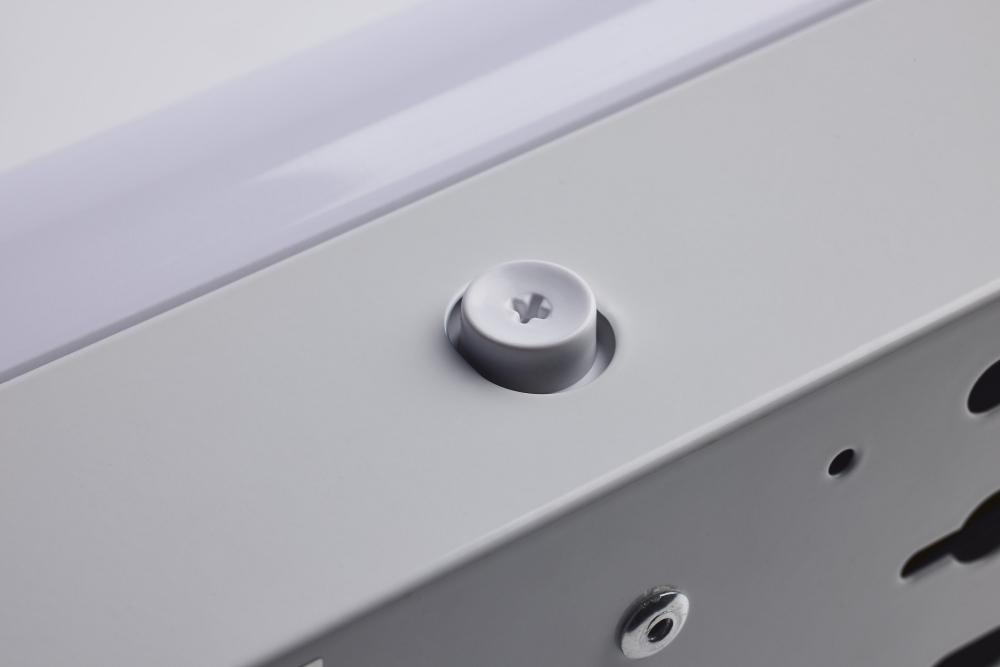

Quick Release Feature for Easy Opening and Installation
Feature 4

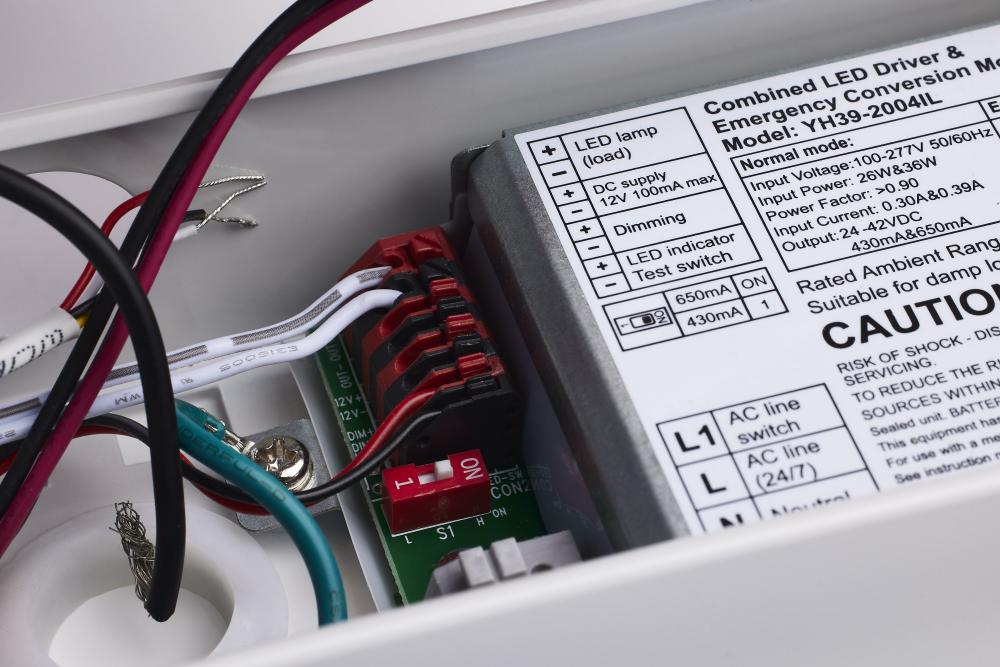

Integrated EM (4W/90 Minute Run Time)
Feature 5

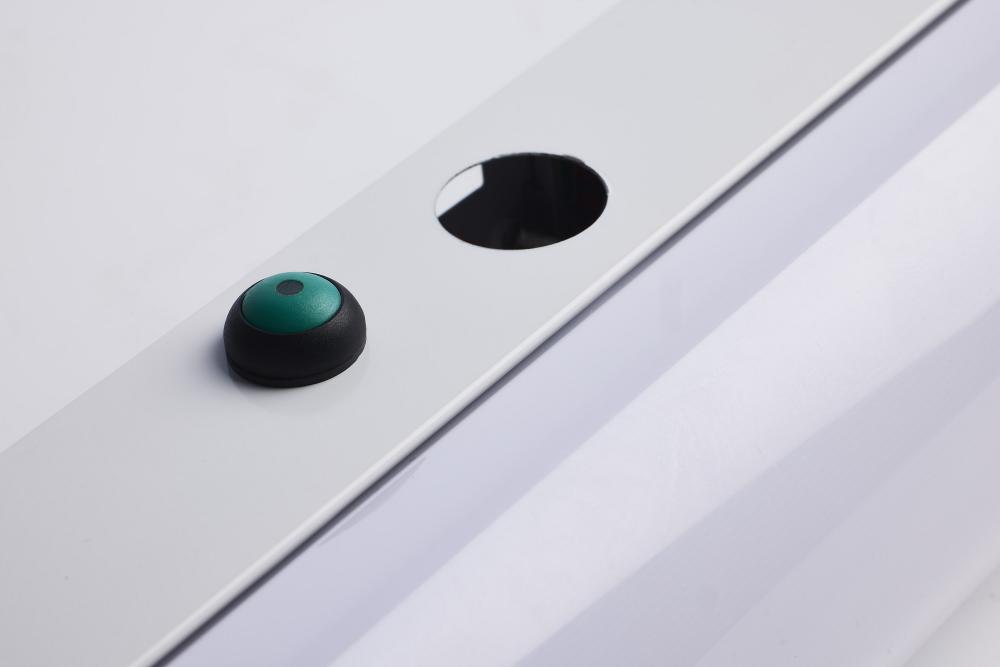

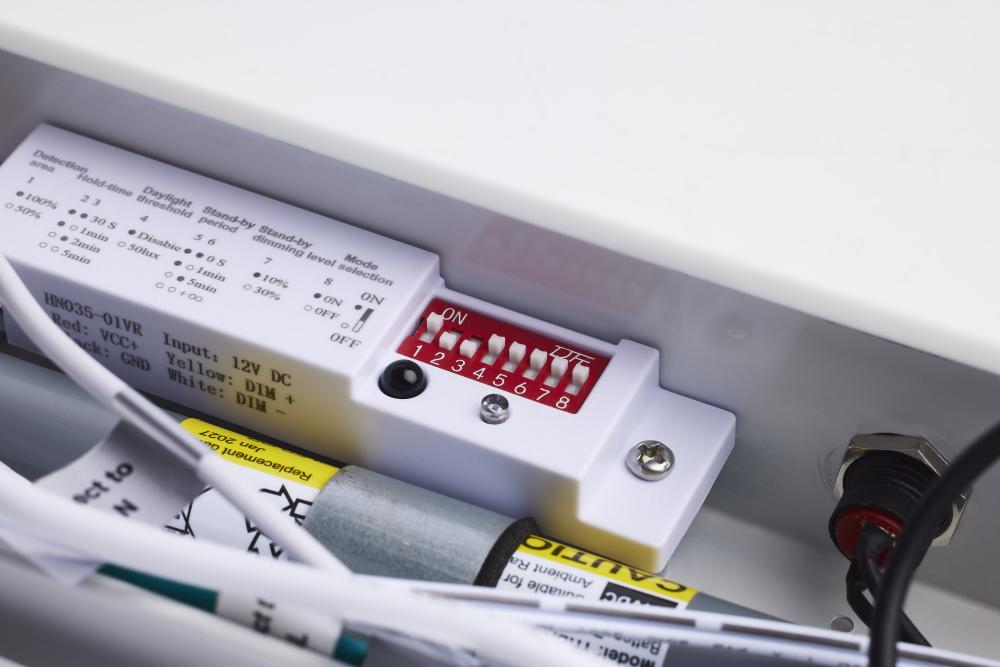

Integrated Microwave Sensor with Bi-level Dimming and On/Off Capabilities
Feature 6
5 Year Warranty
Feature 7

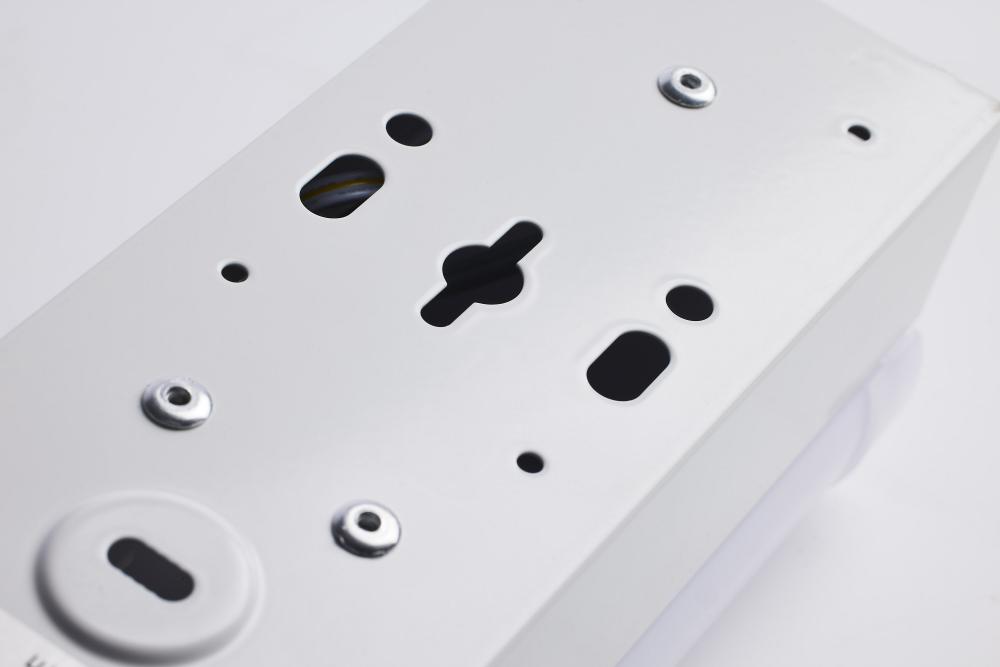

Multiple Mounting Options
Feature 8
2KV Surge Protection
Finish Family
White
Fixture shape
Rectangle
Flicker Free
Yes
Flr Equiv
32W
Has Driver
Yes
Has Emergency Battery
Yes
HID Equiv
100W-150W
Incandescent Equivalent
100W
Indoor Outdoor
Indoor
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lens Finish
White
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's new 65-698 linear strip light, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT selectable technology. This 2 foot, 20 watt version will offer both function and
Material
Steel
Mounting Diameter
4.75
Mounting Procedure
Ceiling
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +60C (+140F)
Pack Type
Box
Photocell
Has Photocell
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's Strip Lighting, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT and wattage selectable technologies. Available in 2 foot and 4 foot versions, with a quick relea
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
2' LINEAR STRIP W/ EM & SENSOR
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
10.60%
Wattage Selectable
No
Weight Lb.
2.31
