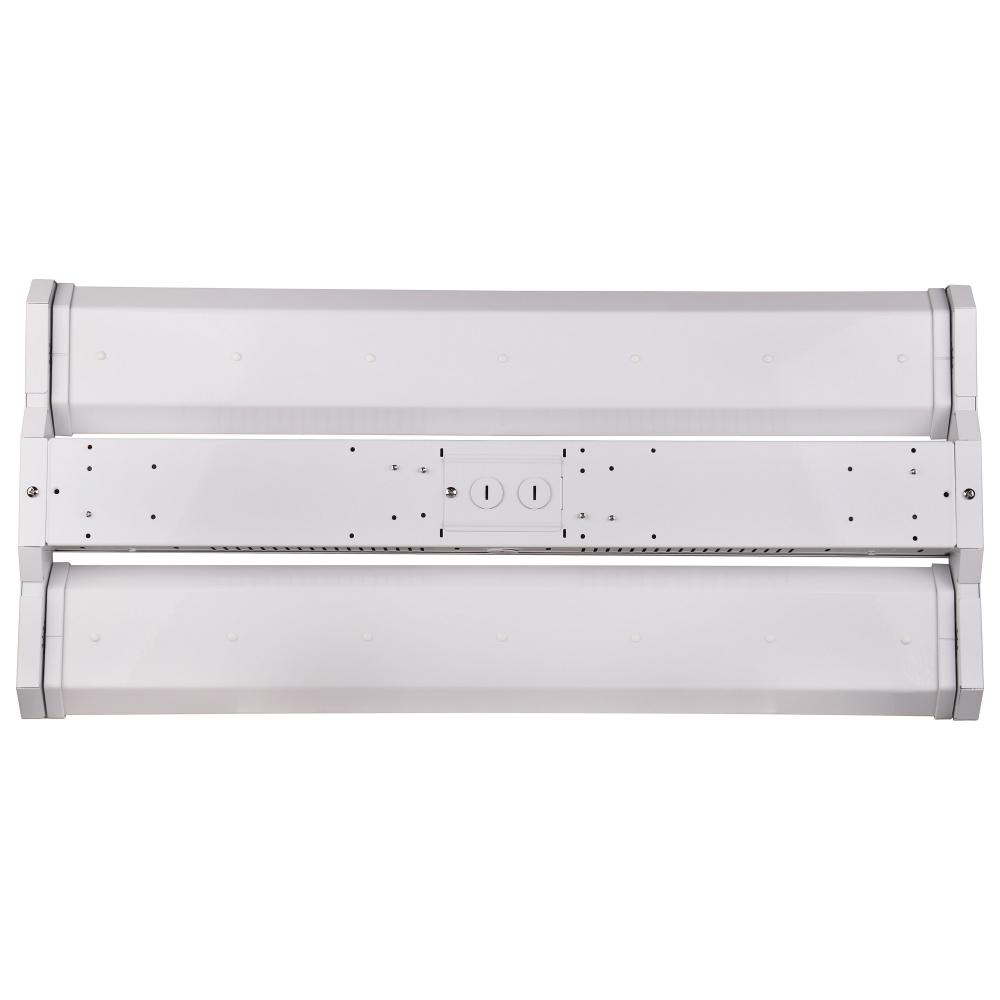

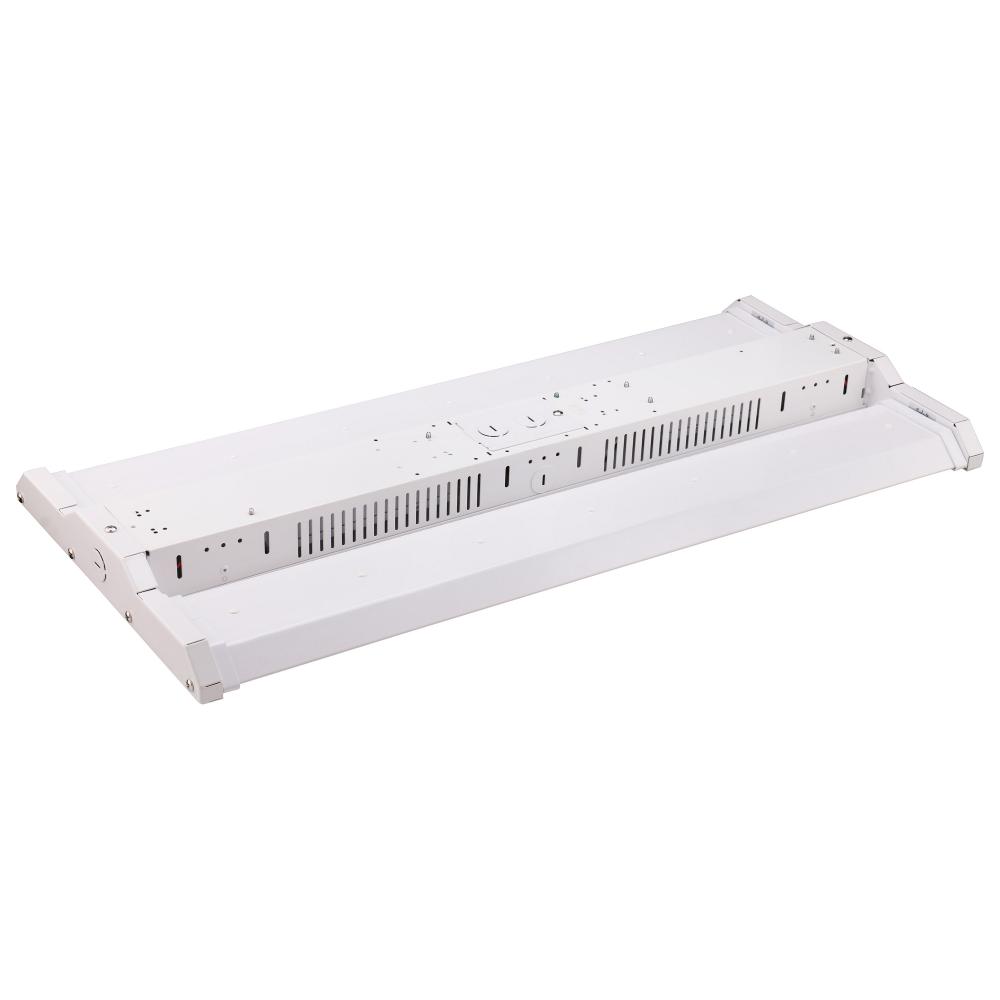

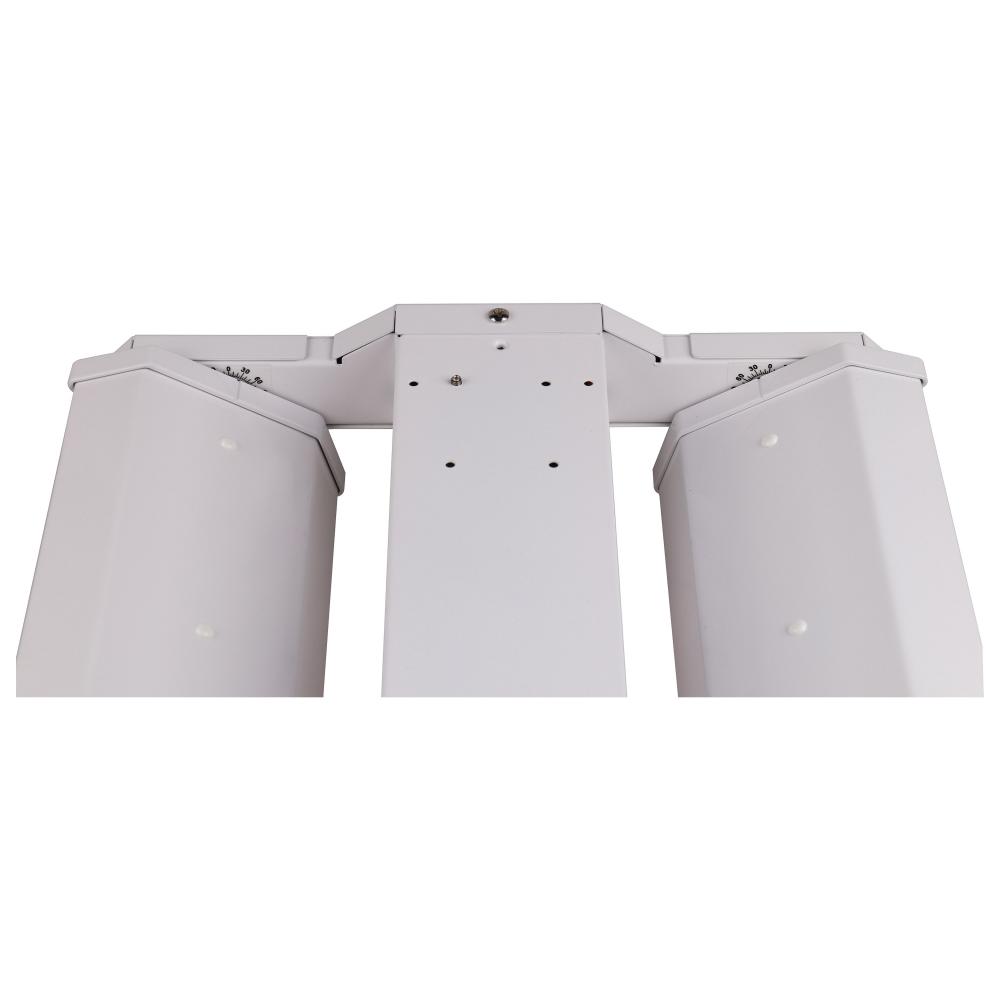

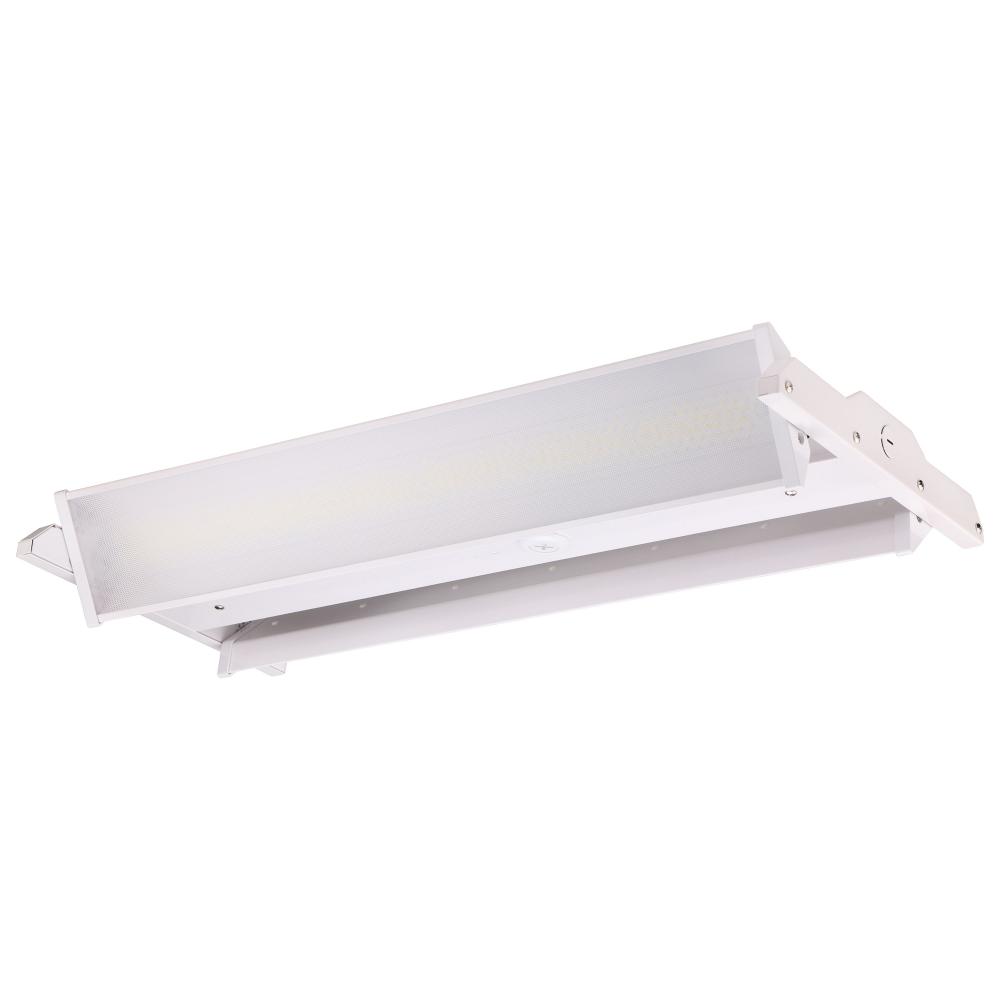

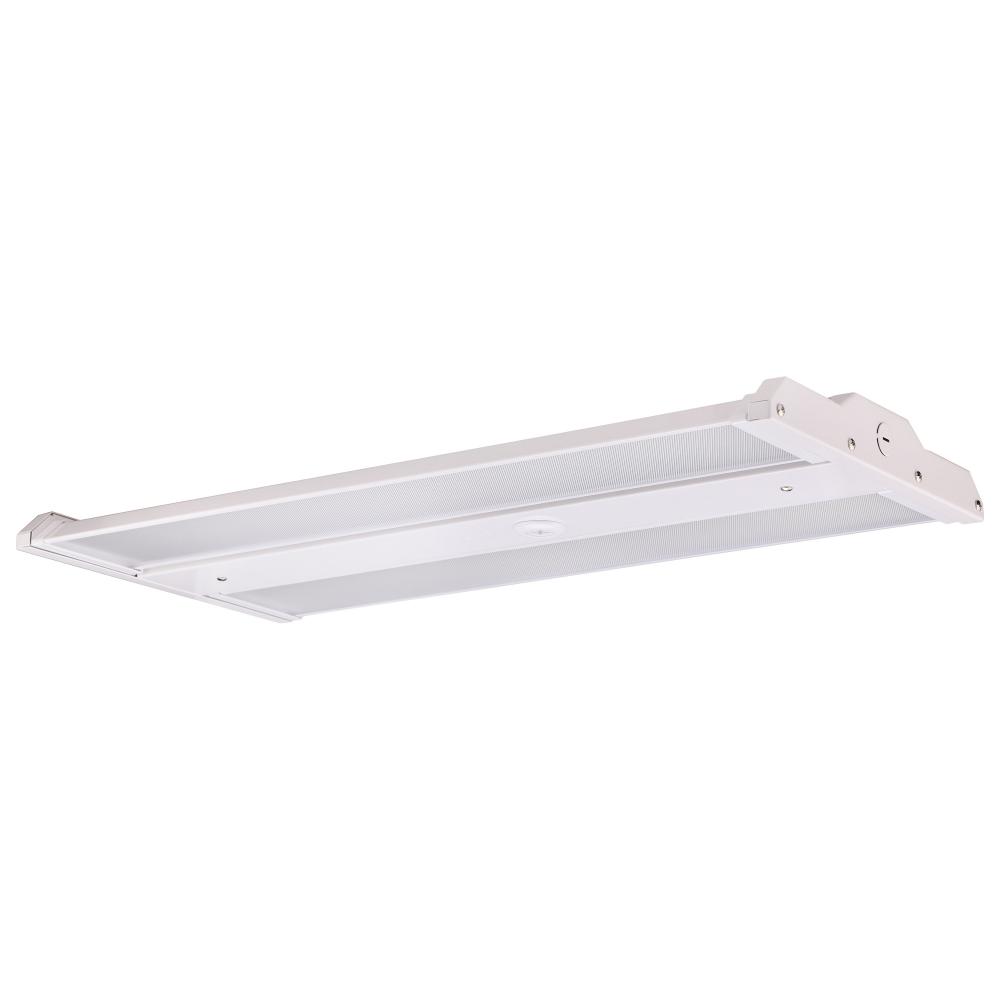

LED Adjustable High bay; 220 Watt; 5000K; Integrated Sensor Port; 120-277 Volt (A361M)
LED Adjustable High bay; 220 Watt; 5000K; Integrated Sensor Port; 120-277 Volt
Product Specification
Item #
A361M
Dimensions
Height: 1.88"
Width: 14.25"
Additional product details
Internal #
A361M
Category
Track Ltg.
Subcategory
Linear Track
Finish
White
Option
LED
, Prop 65
Lumens
3300+
Kelvin
5501-6000
Category
Hi-Bay
Sub Category
Linear
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Dimmable
Yes-Dimmable
Each Height
4.72
Each Length
30.12
Each Width
17.52
Length
26
Lumens
30337L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
5.91
Amps
1.833-0.794A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
100
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
1.4414
Each Quantity
1
Efficacy
137.90 LPW
FCC Compliant
Yes
Feature 1
Length: 26.00 inches, Width: 14.25 inches, Height: 1.88 inches
Feature 2
Damp location rated for indoor use
Feature 3
White Finish
Feature 4
Integrated Sensor Port
Feature 5
5000K Natural White Light
Feature 6
Rated for 50,000 hours
Feature 7
Dimmable
Feature 8
5 year limited warranty
Feature 9
30337 lumens
Finish Family
White
Fixture shape
Rectangle
IC Rated
Yes
Incandescent Equivalent
450W-800W
Indoor Outdoor
Indoor
IOT Enabled
No
IP Rating
IP40
JA8 Compliant
No
Lens Finish
Frost
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-648R1 220 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,00
Material
Aluminum Alloy
Mounting Procedure
Ceiling
Operating Frequency
50-60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Box
Photocell
Multiple Optional Sensors Available
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 220 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,000 hours o
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
220W LED ADJUSTABLE HIGH BAY
Temperature (CCT)
5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
10.36
Wire Quantity
5
Wire Temp Rating
105C (221F)
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
556
50
/
/ 1
($556.50 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 374 items available.
