Product Overview

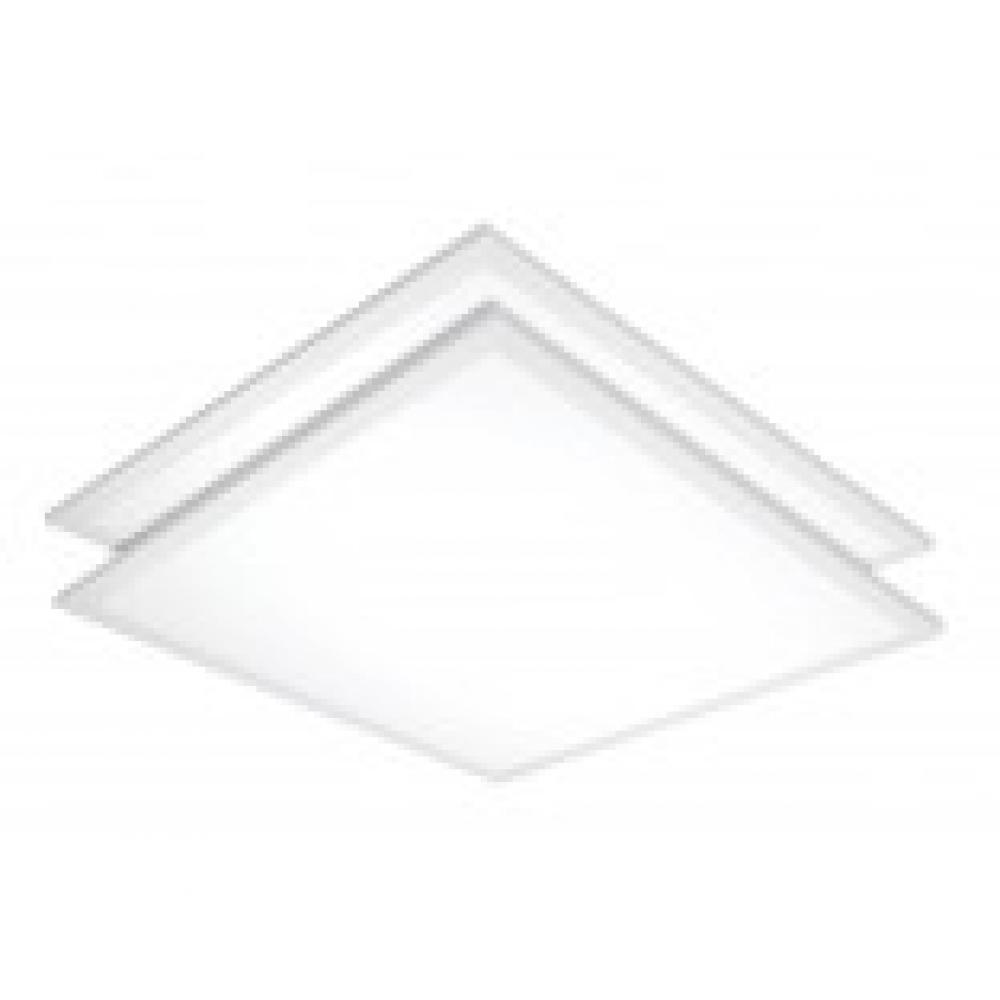

LED Flat Panel Fixture; 40W; 2 ft. x 2 ft.; 3500K; 120-347V

Standard Information

Category:

Specialty Items

Subcategory:

Fluorescent Decorative Panels

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Flat Panel

Sub Category:

Edge Lit

Style:

Utility

Additional Info:

Pricing Note- Product must be ordered in multiples of 2. Pricing (not shown here) is for one piece, even though there are 2 pieces in a case.

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Neutral White

Dimmable:

Yes-Dimmable

Length:

23.69

Lumens:

4200L

Tariff Code:

9405.40.8200

Warranty:

5 Year Limited - Fixtures

Amps:

0.333-0.115A

ANSI Base:

Integrated

BAA Compliant:

No

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only; Use 120-277V or 347V Dimmers only

Each Quantity:

1

Efficacy:

105.00 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Square

Flicker Free:

Yes

Incandescent Equivalent:

175W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Order In Multiples Of:

2

Pack Type:

Bulk

Panel Size:

2x2

Power Factor:

0.9

Quantity In Pack:

2

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

2X2 PANEL 120-347V

Temperature (CCT):

3500K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Weight Lb.:

6.88
