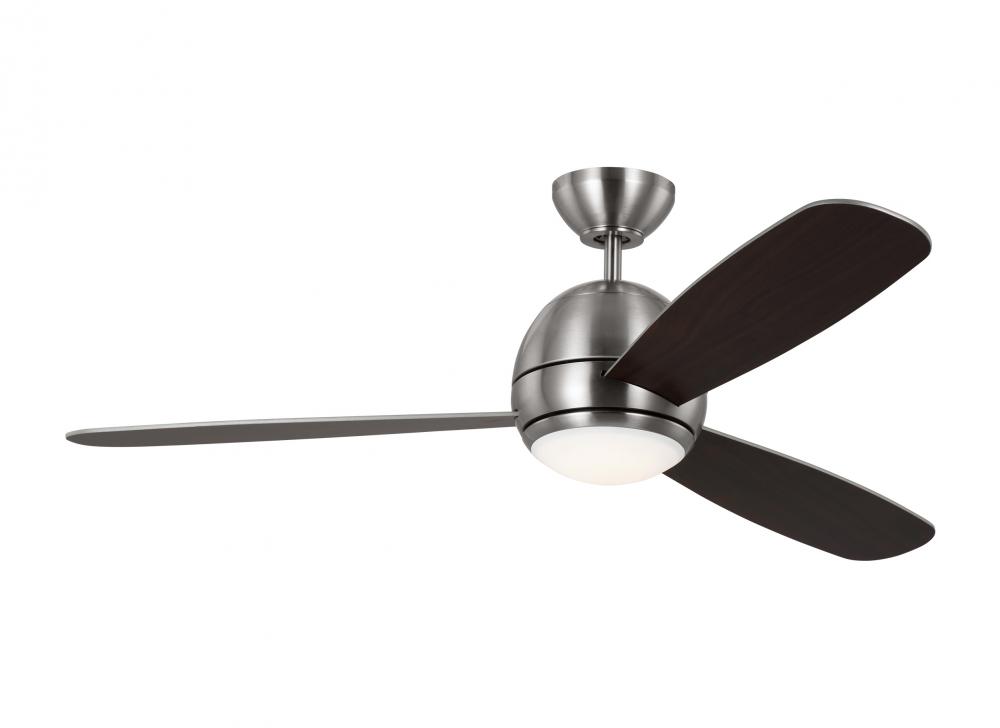

Orbis 52 Inch Indoor/Outdoor Integrated LED Dimmable Ceiling Fan (AEPQ5)
With a minimalist, contemporary design, the Orbis 52 LED fan can complement a wide variety of room styles. It’s offered in four finish combinations to suite virtually any décor. A hard-wired wall control is included. Ideal for use in great rooms, living rooms, bedrooms and bonus rooms.
Downloads
Product Specification
Item #
AEPQ5
Dimensions
Additional product details
Internal #
AEPQ5
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Steel
Style
Contemporary
Option
Title 24
, Damp Rated
Voltage
100-120
Lumens
1101-1600
Number of Blades
3 Blades
Kelvin
2501-3000
Location Rating
Damp Rated
Wattage
20w
Category
Ceiling Fan
Finish
Brushed Steel
Style
Contemporary
Option
Damp Rated
, Title 24
Family
Orbis 52 LED
Glass
Acrylic Lens
Voltage
120
Shade
Frosted
Number of Bulbs
1 Bulbs
Blade Finish
Silver
Blade Pitch
12
Bulb Type
LED - Array
Canopy
D:5 3/4'' H:2 1/2'' Round
Designer
Generation Lighting
, Orbis 52 LED
Introduction Date
01/01/2023
Kelvin
3000
Keyword(s)
Bedroom, Living Room, Great Room
Light Kit Included
Yes
Lumens / Light Output
1120
Motor Size
153 X 18 mm
Motor Type
AC
Order Minimum
1
Remote Control Included
Yes
Ship Carton Height
11.75
Ship Carton Length
26
Ship Carton Width
13.63
Ship Weight
21.45
Sold By
EA
Vendor Ship Method
Parcel
Weight
16.1
Blade To Ceiling Height
11.8
Bulb Base
19 - Integrated
Bulb CRI
90
Bulb Dimming Range Max
100
Bulb Dimming Range Min
10
Bulb Included
Yes
Bulb Light Source Name
LED
Bulb Rated Life
50000
Bulb Volts
120
Bulb Watts Consumed
20
Bulb Watts Rated
20
Canopy Diameter
5.8
Canopy Style
Downrod
Capacitor Value
4uF/350V/105C
CFM High
5295
CFM Low
1734
CFM Watt High
88
CFM Watt LOW
248
Country of Origin
China
Damp Rated
Yes
Dimensions
D:52'' H:14.6''
Downrod Diameter
0.5
Downrod Length
4.5
Energy Star
No
Fan Diameter
52
Fan Style
Downrod
Freight Class
110
Lamping
1 Array Integrated 20 Watt Light Bulb
Made To Order
No
Max Ceiling Slope
20
Max Watt
20
Maximum Blade To Ceiling Height
11.8
Minimum Blade To Ceiling Height
10.3
Minimum Ceiling Height Required
7.98
Number of Blades
3
Overall Height
14.6
Qty Fabric Glass Shades
1
Remote Control Type
Wall Mount Control, 4-Speed, Dimmer and Manual Reverse
Safety Rating
cUL Approved
Shade Diameter
7
Shade Height
1.38
Shade Shape
Round
Standard Efficiency
104
Standard Energy Use Wave
35
Standard Estimated Yearly Energy Cost
10
Standard Weighted Average Airflow
3626
Title 24
Yes
TSCA Title VI Compliant
Yes
Watts High
60
Watts Low
7
Other Details:
- 4.5'' brushed steel downrod included, sloped ceiling compatible, and includes all mounting hardware for easy installation
- Available Finishes: Brushed Steel, Matte White, Midnight Black and Satin Brass
- Contemporary 3-blade ceiling fan ideal for bedrooms, living rooms, family rooms, and outdoor covered porches and patios
- Damp Rated
- From the brand formerly known as Monte Carlo
- Includes a remote controlled 3000K, 20-watt, dimmable integrated LED light bulb for eco-friendly lighting
Included Items
Bulbs: (1) x 20 Watt 19 - Integrated Array LED
