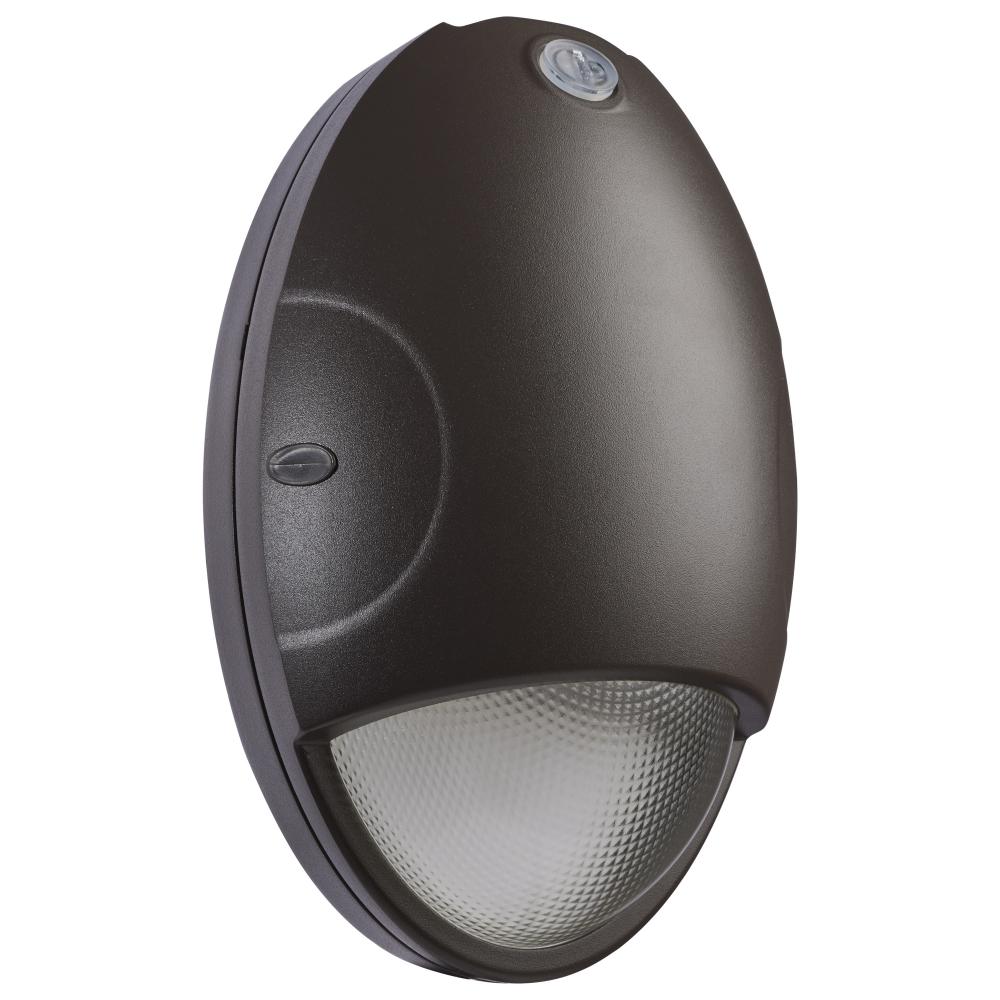

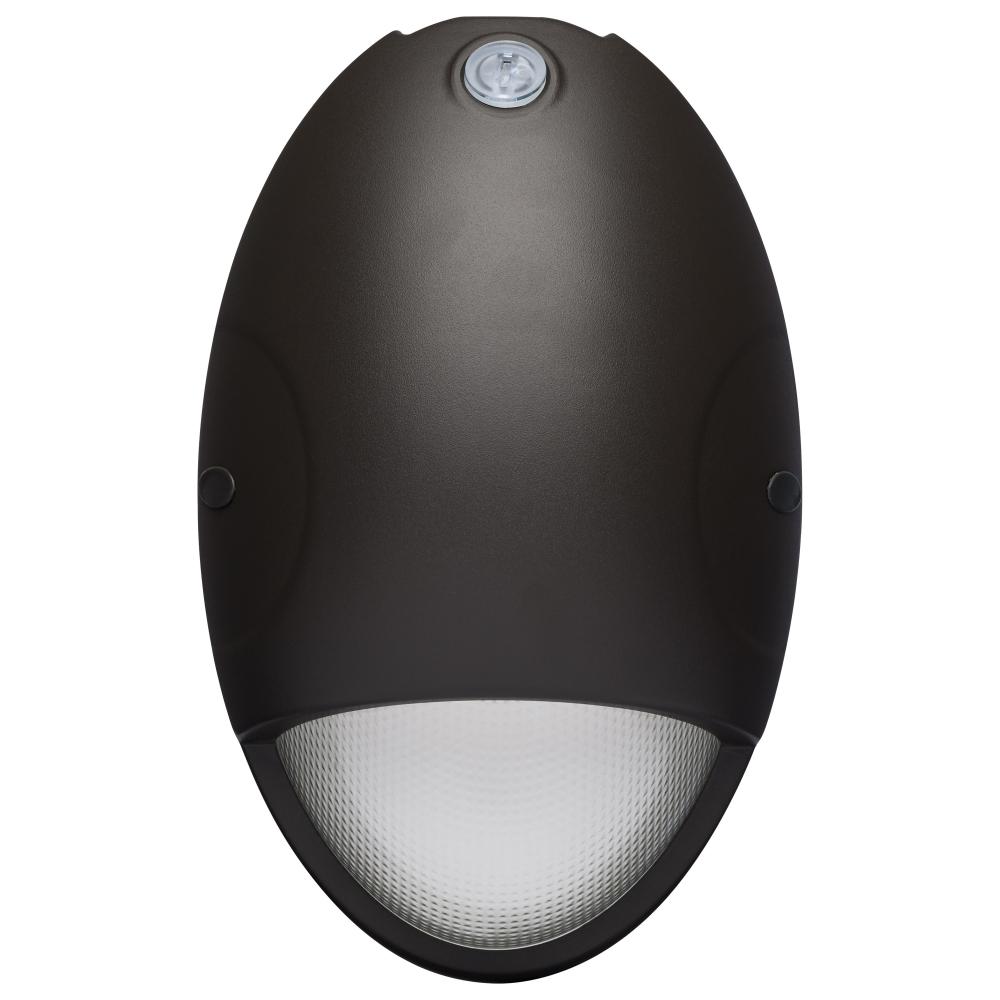

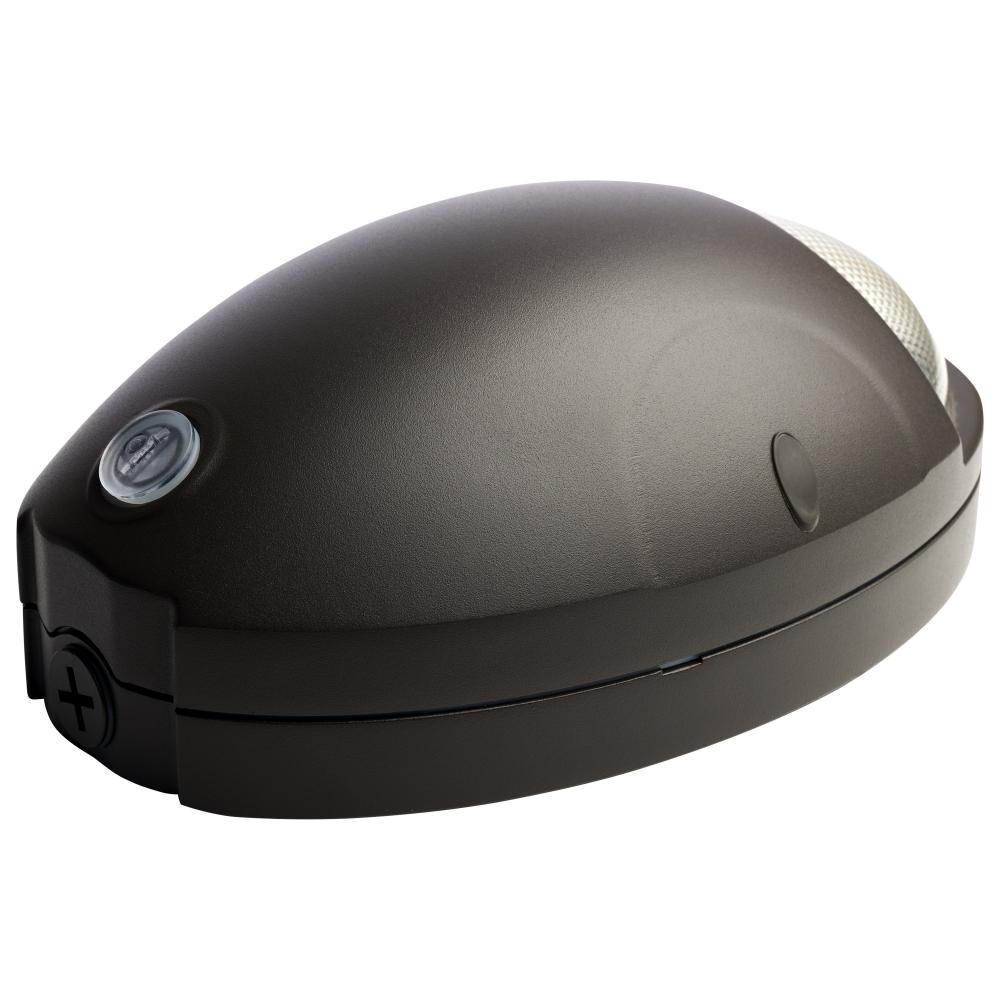

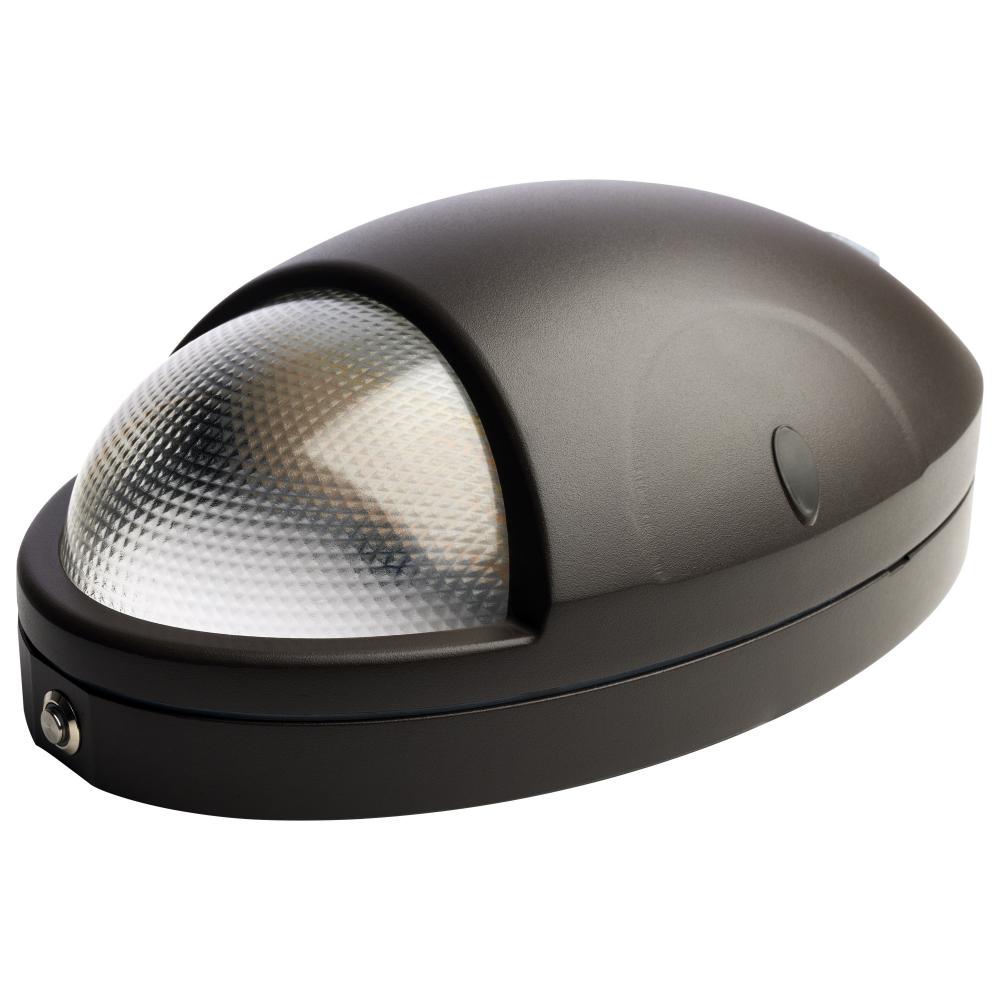

Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish (A95GP)
Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish
Product Specification
Item #
A95GP
Dimensions
Height: 10.47"
Width: 6.54"
Additional product details
Internal #
A95GP
Category
Utility
Subcategory
Emergency Lights
Option
LED
, Prop 65
Category
Wall Pack
Sub Category
Emergency Lighting
Style
Utility
Additional Info
Battery Mode: 5 Watts, 90 Minute Run Time
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Neutral White to Natural Light
Diameter
6.54
Dimmable
Yes-Dimmable
Each Height
10.83
Each Length
6.77
Each Width
4.06
Lumens
1740L-1814L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.125-0.054A
ANSI Base
Integrated
Battery Chemistry
Lithium-ion (Li-ion)
Beam Angle
100
B_U_G_Rating
B1-U3-G1
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.1723
Each Quantity
1
Efficacy
116.00/118.47/120.93 LPW
FCC Compliant
Yes
Feature 1

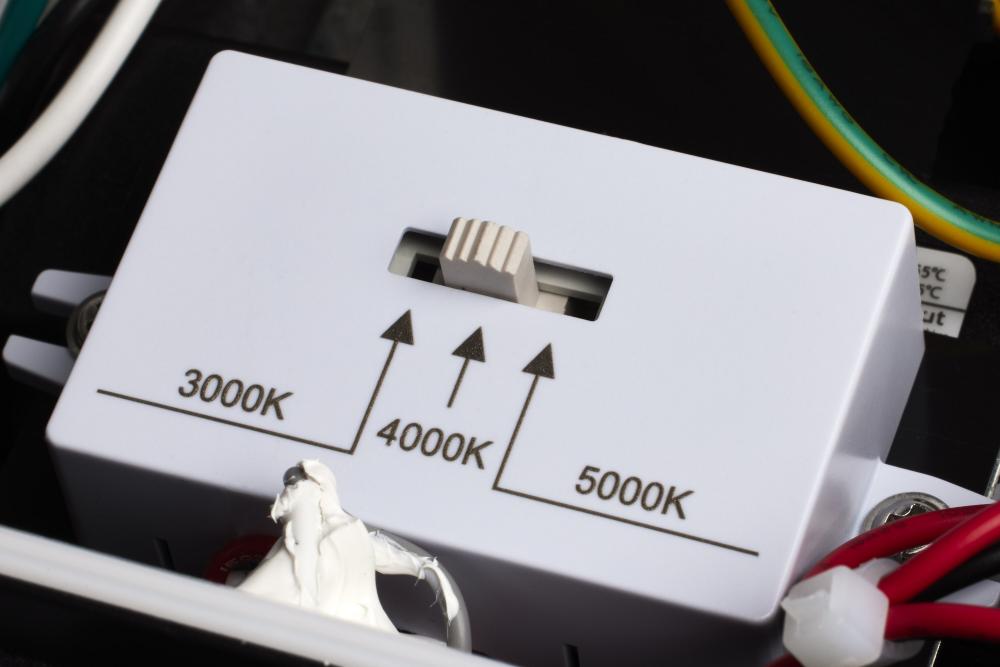

3500K/4000K/5000K CCT Selectable
Feature 2

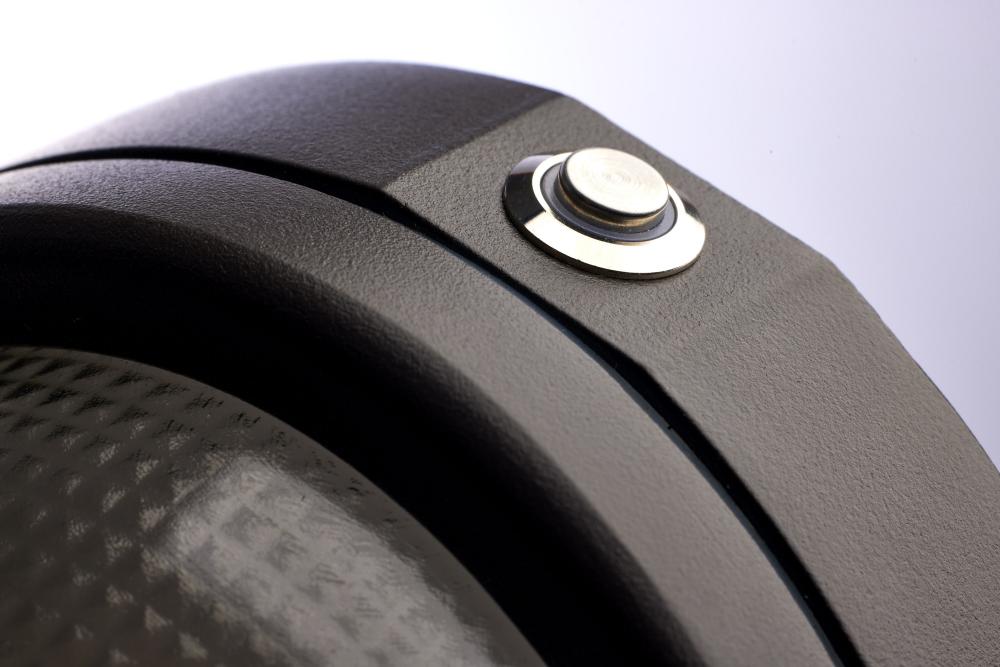

Integrated EM Backup Test Indicator Button
Feature 3

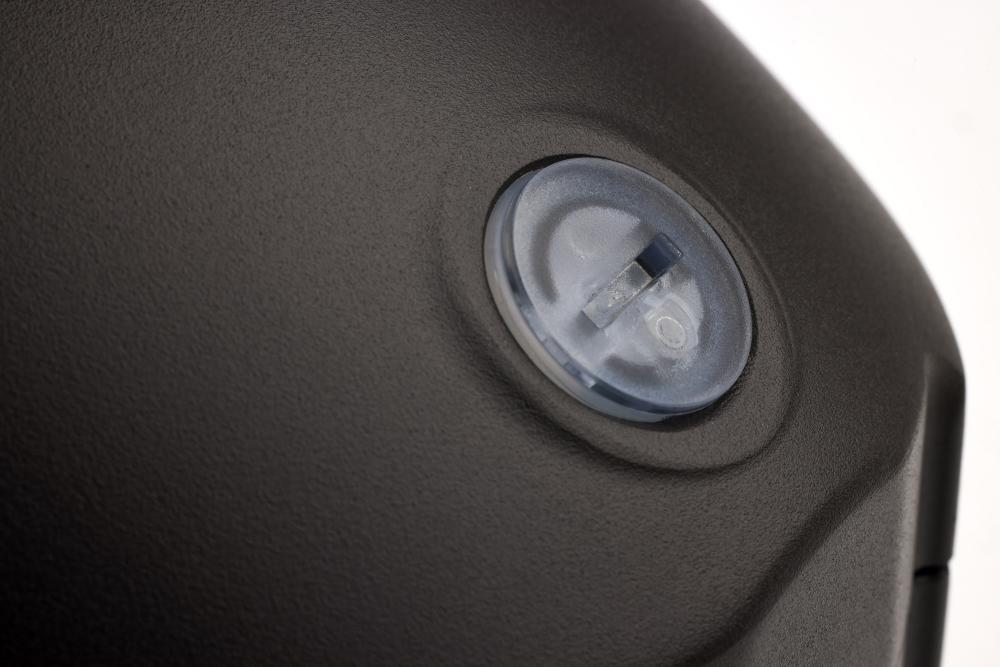

Integrated by-passable photocell
Feature 4
Wet Location
Feature 5
IK08
Feature 6
DLC Premium
Feature 7
Bronze Finish
Feature 8
H: 10.47 inches X W: 6.54 inches X D: 3.78 inches
Finish Family
Bronze
Fixture shape
Oval
Flicker Free
No
Has Emergency Battery
Yes
HID Equiv
60W
Impact Rating (IK)
IK08
Incandescent Equivalent
75W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No

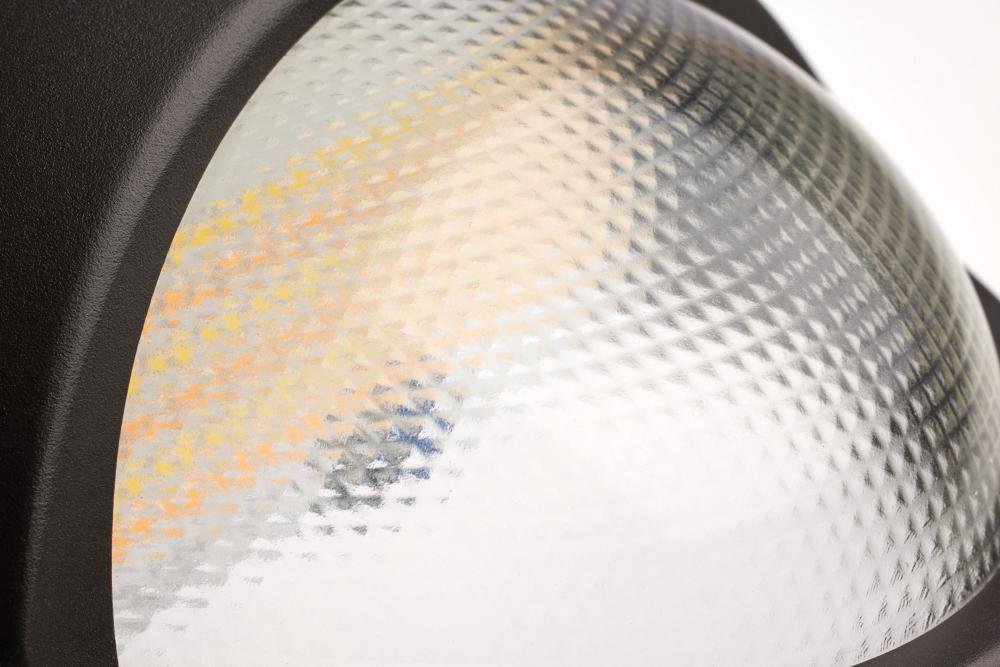

Lens Finish
Prismatic
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's state-of-the-art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixtur
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
0C (+32F) to +45C (+113F)
Pack Type
Color Box
Photocell
Has Photocell
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's state-of-the-art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixtur
Safety Listing
cULus
SDS class
LED_Fixture
Short Description
LED SMALL EM WALL PACK BRONZE
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
3.61
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
329
00
/
/ 1
($329.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 53 items available.
Point of Sale
