Product Overview

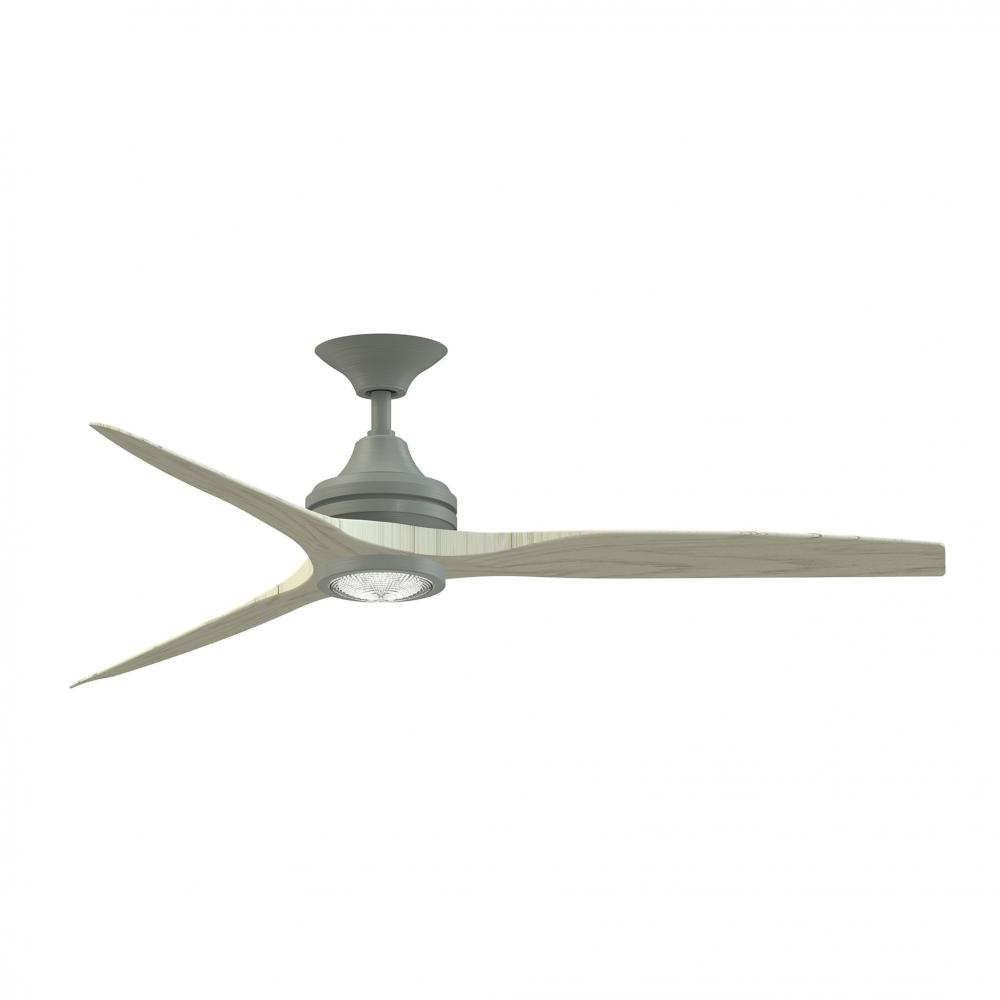

The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Standard Information

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Black

Miscellaneous

Refinement Options

Category:

Fan-Multi

Finish:

Antique Graphite

Family:

Spitfire

Voltage:

120 V

Air Flow CFM:

5164

Air Flow Efficiency:

72

Canopy:

7.09 Dia x 2.2 H

Harmonized Codes:

8414.51.3000

Light Kit Included:

No

Motor Size:

188 x 25

Motor Type:

AC

Ship Carton Height:

10.94

Ship Carton Length:

14.37

Ship Carton Width:

10.43

Ship Weight:

18.74

Sold By:

Each

Warranty:

Limited Lifetime Warranty

Weight:

17.42

Airflow Efficiency Low:

132

Airflow Efficiency Medium:

101

Avg Airflow Efficiency:

80

Avg CFM Energy:

3527

Avg Energy Use:

44

Avg Estimated Yearly Energy Cost:

12

Avg Estimated Yearly Energy Cost on HIGH:

20

Cap Included:

No

Carton Cubic Feet:

0.9489

Case Height:

10.94

Case Length:

14.37

Case Quantity:

1

Case Weight Pounds:

18.74

Case Width:

10.43

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12

Ceiling To Bottom (No Light Kit):

12

Ceiling To Bottom (With Light Kit):

13.71

CFM Low:

1526

CFM Medium:

3280

Country of Origin:

China

Current Draw High:

0.6

Current Draw Low:

0.24

Current Draw Medium:

0.4

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

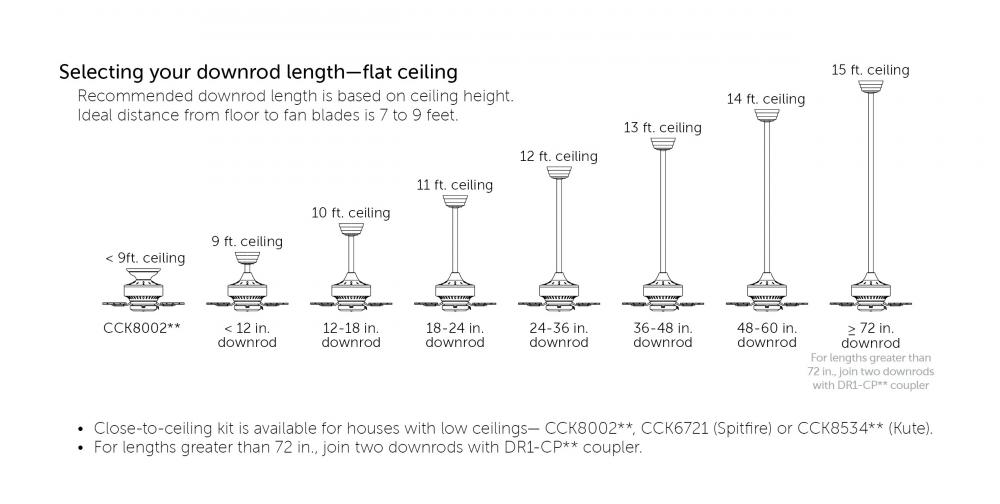

Downrod Length:

4.5

Exempt from DOE Procedure:

No

Fan Energy Star 4:

No

Housing Diameter:

8.07

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

80

Location Rating:

Damp

Max Ceiling Slope:

19

Max Length:

60

Max Width:

60

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number Of Speeds:

3

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High:

198

RPM Low:

66

RPM Medium:

124

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60HZ

Watts High:

72

Watts Low:

12

Watts Medium:

32

3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features

5227 Cfm On High

Limited Lifetime Warranty

Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Led Light Kit Available (sold Separately)

Tr500 Handheld Remote With 23a Battery Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)
