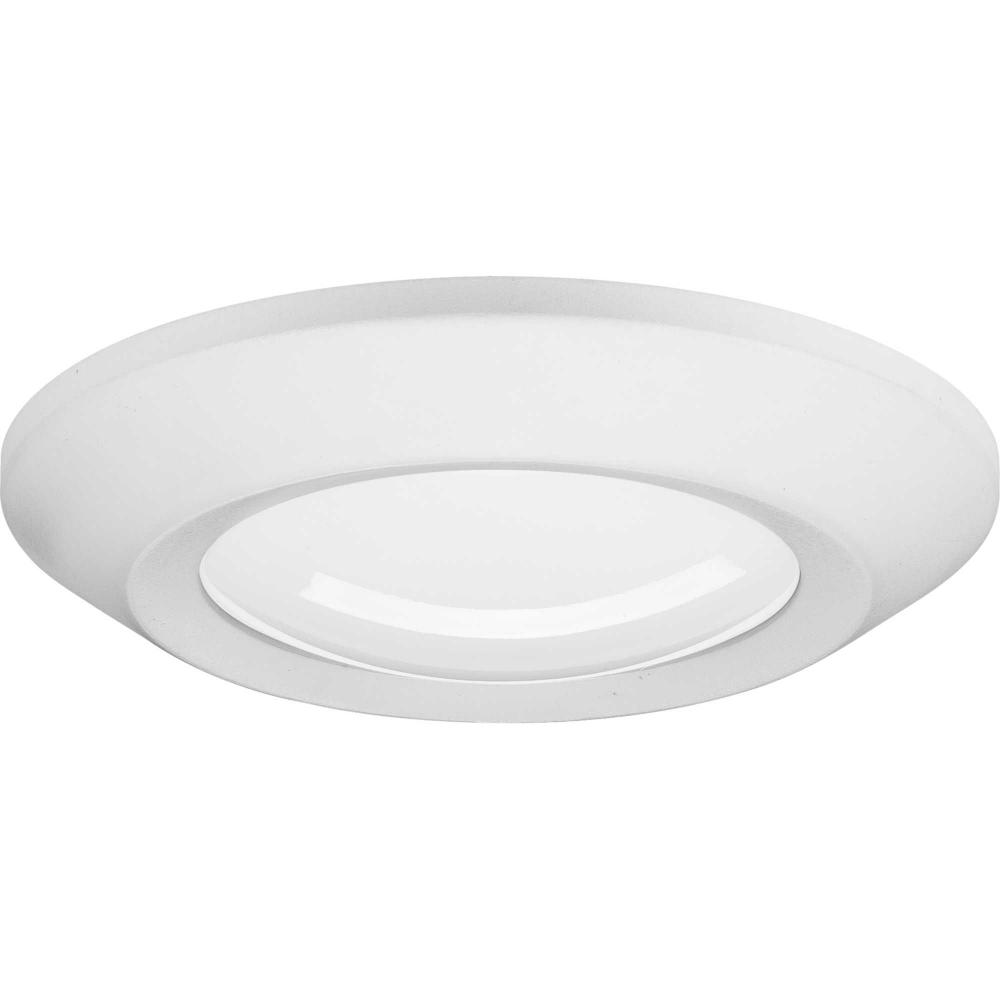

5-1/2" Intrinsic Collection Surface Mount LED in White (AQ5GV)
Elevate your design vision with just the flip of a switch with our Intrinsic Surface Mount LED Collection. The simple, classic design of these light fixtures can easily be installed into a variety of style applications in both residential and commercial settings. We offer two different sizes of surface mounts, both coated in a crisp white finish, to meet your unique design needs. Each smooth trim ring surrounds an integrated LED light fixture ready to emit general ambient lighting wherever it calls home in your design plan.
Downloads
Product Specification
Item #
AQ5GV

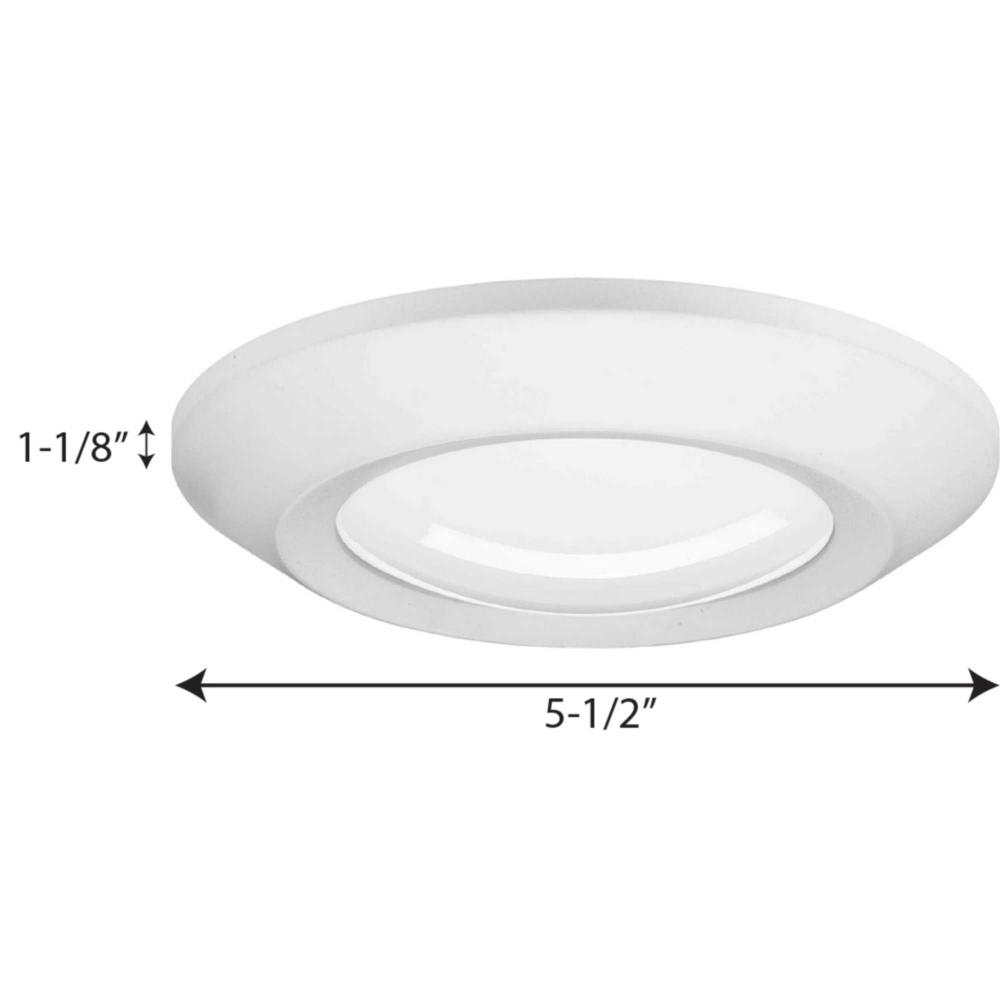

Dimensions
Height: 1.13"
Width: 5.50"
Length: 5.50"
Additional product details
Internal #
AQ5GV
Category
Exterior
, Flush Mounts
Subcategory
Exterior Flush mounts
, Outdoor Flush Mounts
Finish
White
Style
Transitional
Option
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
, Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Close-to-Ceiling
Finish
Satin White
Option
Energy Star
, Title 20
, Title 24
, Wet Rated
Family
Intrinsic
Glass
Diffused
Voltage
120
Number of Bulbs
1 Bulbs
Bulb Hours
35000
Bulb Type
Integrated LED
Introduction Date
01/01/2020
Kelvin
3000
Length
5.50
Lumens / Light Output
650
Material
Steel
Ship Carton Height
5.87
Ship Carton Length
5.75
Ship Carton Width
1.81
Ship Weight
0.68
Special Features

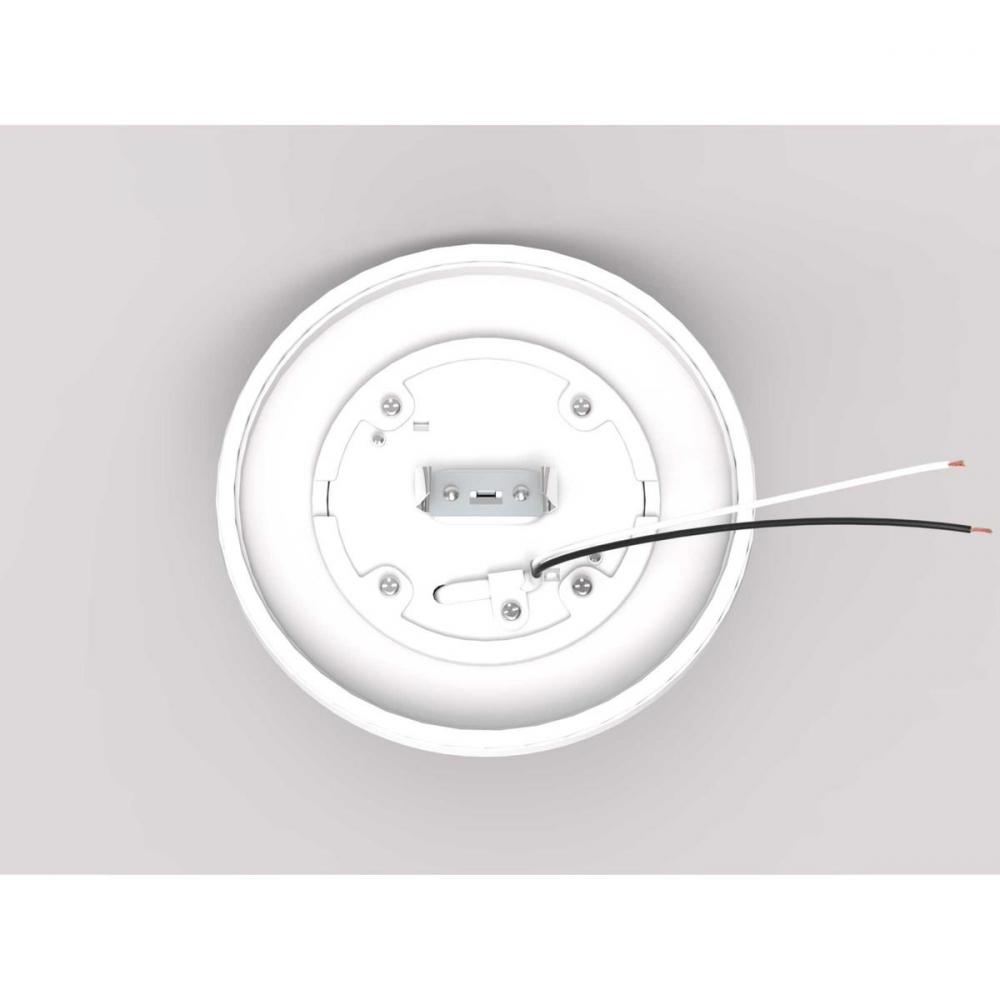

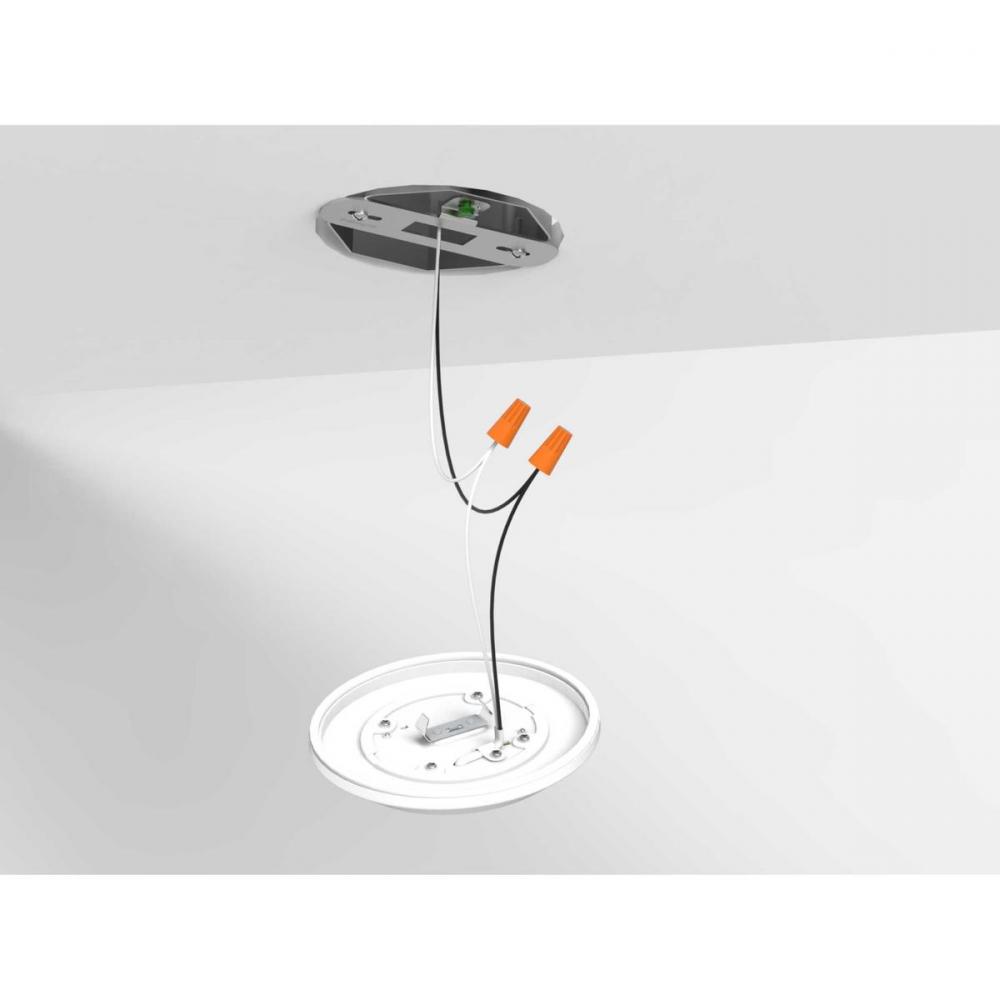

Integrated AC LED technology 3000K, 90 CRI, 650 lumens (delivered);Diffused polycarbonate lens controls direct glare from the LEDs;Simple snap in installation for J-Box with 1/2" minimum depth;Lumen output and distribution comparable to a 65W incandesc
Vendor Ship Method
Non UPS Shippable False
Warranty
5 year
Weight
0.60
Wire Included
6 in
Americans with Disabilities Act
No
Bulb Base
Integrated
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Certified Listed Location
Wet Location Listed
Construction Material Main Part
Construction
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Eaton_AAL06;Eaton_SAL06P;Leviton_IPI06-1LZ;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Maestro MACL-153M
Dimming Protocol
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient
No
Energy Star
Yes
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
Grounded Convenience Outlet included
No
JA8
2019
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
11.5
Lens Shade Material
Polycarbonate
Lumens per Watt
60.00
Mount location
Wall Or Ceiling
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Included Items
Bulbs: (1) x 11.5 Watt Integrated LED
