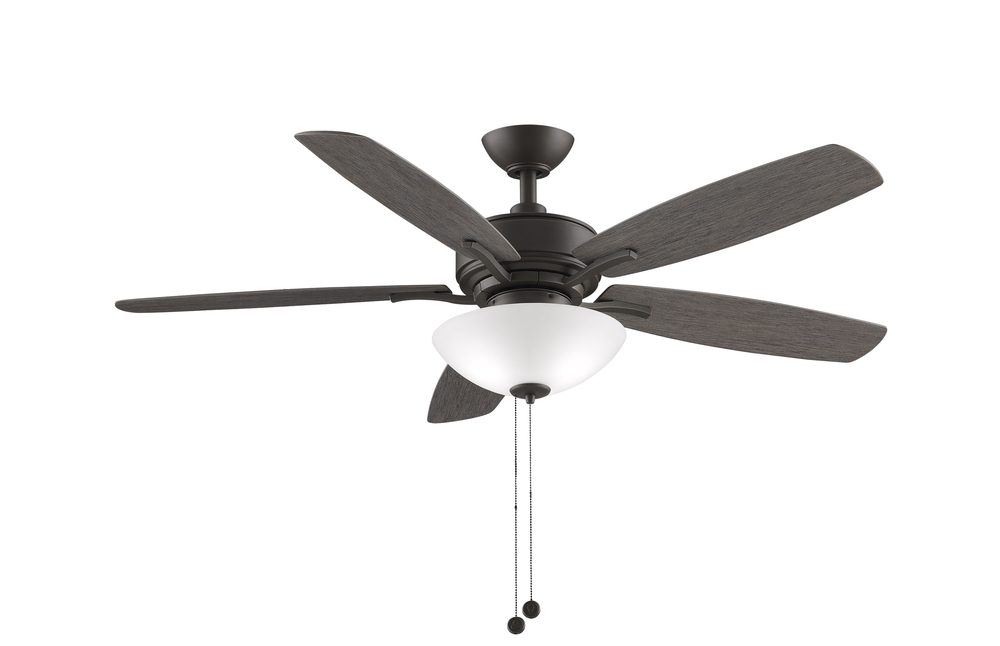

Aire Deluxe - 52 inch - GR with LED Bowl LK (GAF3)
Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
4842 Cubic Feet per Minute
Electricity Rate
55 Watts (excluded lights)
Airflow Efficiency
88 Cubic Feet Per Minute Per Watt
Product Specification
Item #
GAF3
Dimensions
Height: 17.36"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
GAF3
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Gray
, Miscellaneous
Style
Traditional
Option
Dry Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, White/Off-White
Lumens
1601-2600
Number of Blades
5 Blades
Location Rating
Dry Rated
Wattage
9w
Category
Fan-Uni
Finish
Matte Greige
Option
Dry Rated
Family
Aire Deluxe
Glass
White Frosted
Voltage
120 V
Number of Bulbs
2 Bulbs
Additional Info
3 speed AC motor with reverse switch
, 3941 CFM on High
, Lifetime Limited Warranty
, Pull Chain Operated
, Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
4842
Air Flow Efficiency
88
Amperage
0.46
Blade Finish
Weathered Wood
Blade Pitch
12
Bulb Type
9 Watt Led Bulb
Canopy
5.91 Dia x 2.13 H
Diameter
9.06
Down Rod Included
4.5
Electricity Used
55
Harmonized Codes
8414.51.3000
Kelvin
2700
Length
52
Light Kit Included
Yes
Lumens / Light Output
1620
Material
Wood
Motor Fan Speed
3
Motor RPM
158
Motor Size
153 X 15
Motor Type
AC
Ship Carton Height
10.5
Ship Carton Length
23
Ship Carton Width
12.8
Ship Weight
19.67
Sold By
Each
Warranty
Limited Lifetime
Weight
17.26
Airflow Efficiency Low
186
Airflow Efficiency Medium
124
Avg Airflow Efficiency
102
Avg CFM Energy
3476
Avg Energy Use Watts
34
Avg Estimated Yearly Energy Cost
10
Avg Estimated Yearly Energy Cost on HIGH
15
Blade Finish Method
Paper Overlay
Blade Material
Wood
Blade Reversible
No
Blade Sweep
52
Bulb Base
E26
Bulb CRI
90
Bulb Wattage
9
Canopy Diameter
5.91 Dia
Canopy Height
2.13 H
Cap Included
No
Carton Cubic Feet
1.79
Cartons Per Unit
1
Case Height
10.5
Case Length
23
Case Quantity
1
Case Weight Pounds
19.67
Case Width
12.8
CEC Uploaded
Yes
Ceiling To Blade Edge
10.59
Ceiling To Bottom
17.36
CFM Low
1927
CFM Medium
3222
Compatible Accessories
CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCK1-52GR
Compatible Controls
BTCR9, BTR9, C4, CRL4LA, CRL4WH, CRL8TS
Compatible Wall Controls
CW1SWLA, CW1SWWH, CW2LA, CW2WH, CW60WH, CWRL4LA, CWRL4WH
Country of Origin
China
CRI
90
Current Draw High
0.46
Current Draw Low
0.2
Current Draw Medium
0.33
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Dry Rated
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
9.06
Included Control Type
Pull Chain
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
19
Max Watt
55
Maximum Slope Degree
19
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
5
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM High (VI)
158
RPM Low (II)
67
RPM Medium (IV)
113
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
10
Watts Medium
26
Watts Per Bulb
9
Other Details:
- 3 Speed Ac Motor With Reverse Switch
- 3941 Cfm On High
- Lifetime Limited Warranty
- Pull Chain Operated
- Set Of 5 Reversible 52 Inch Blades And (2) 9 Watt Led Bulbs And Light Kit Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
