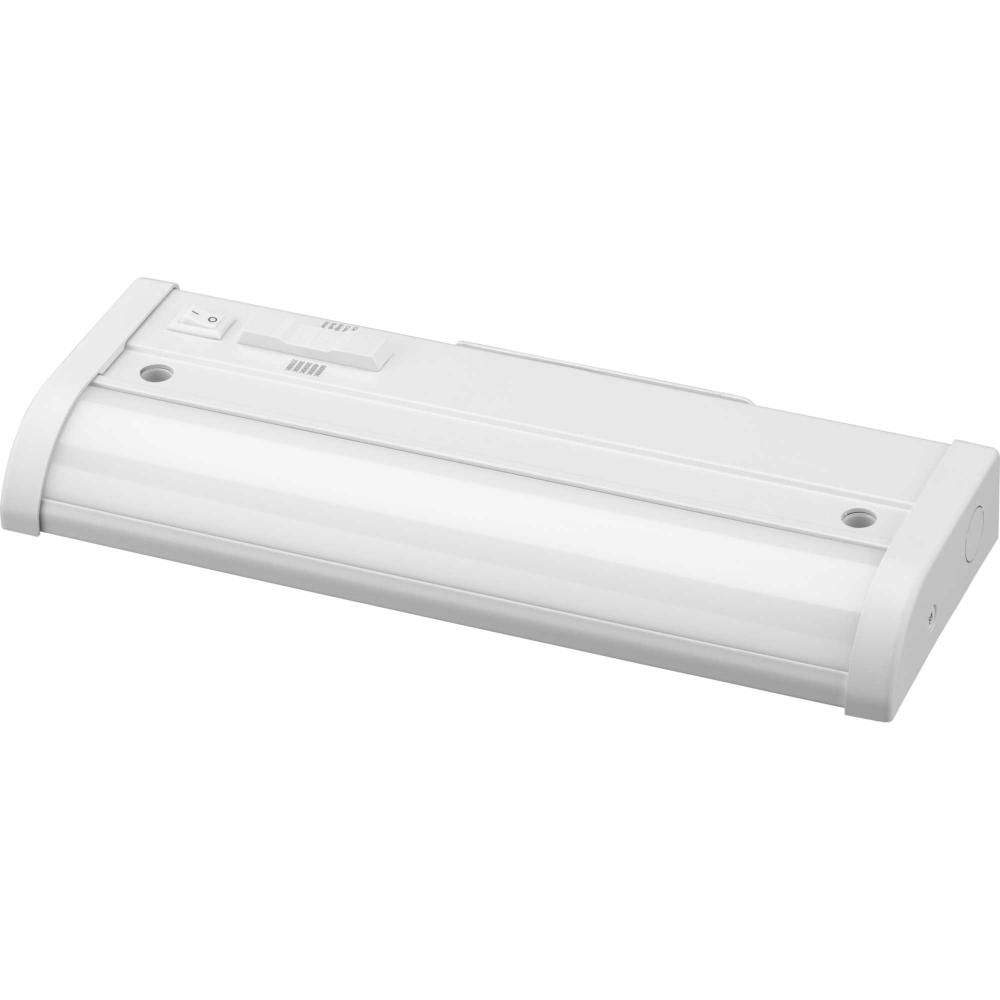

Hide-A-Lite Collection 9" LED 5-CCT Linear Undercabinet Light (AQ8FY)
Combine elegant design with energy-efficient LED light in the Hide-A-Lite Collection 1-Light 9-Inch Satin White Modern LED Linear Undercabinet Light. The fixture's frame is coated in a crisp satin white finish. An access plate and quick connect wire connectors make installation easy. The fixture is directly wired. Two armored cable fittings are included. The 5-CCT selectable LED light engine offers flexibility in application, allowing the choice of 5 different color temperatures allowing for the best lighting color to fulfill the design intent. An on-off switch on the front allows for easy task light illumination.
Downloads
Product Specification
Item #
AQ8FY

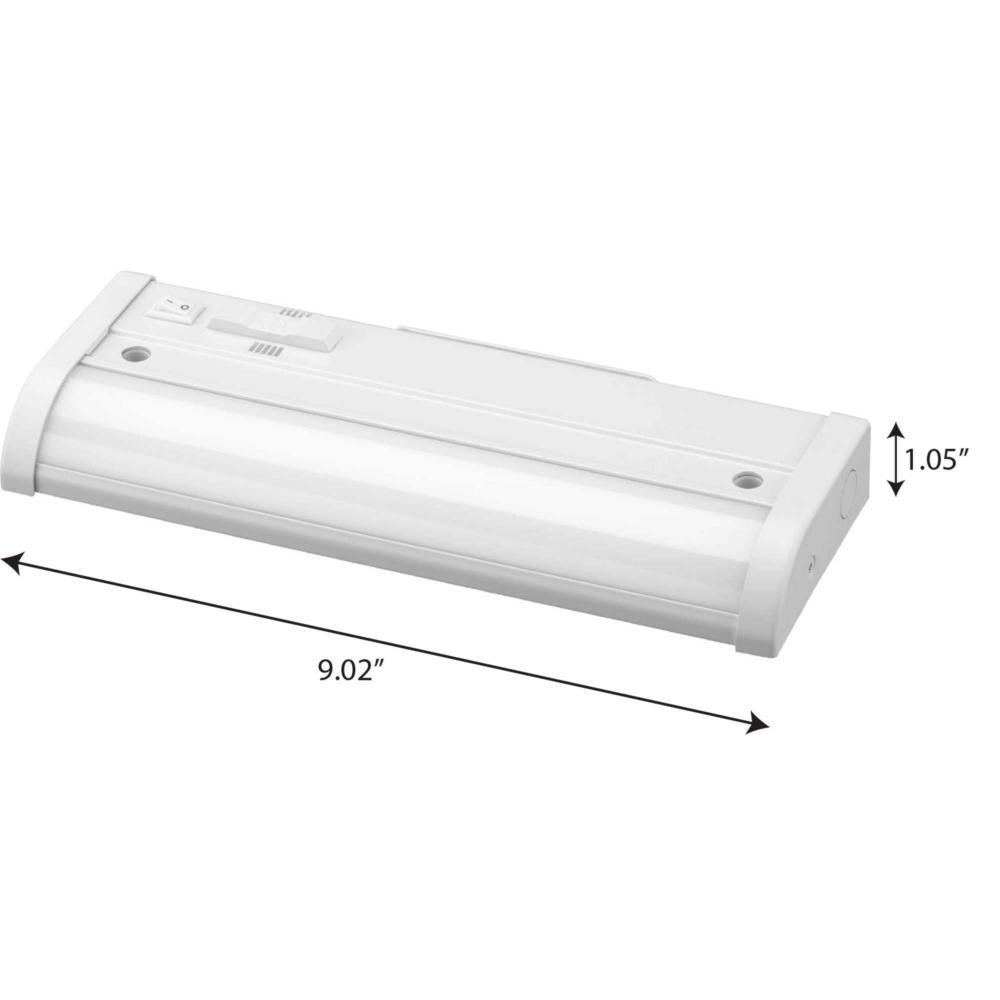

Dimensions
Height: 1.05"
Width: 3.28"
Length: 9.02"
Additional product details
Internal #
AQ8FY
Category
Undercabinet
Subcategory
LED Undercabinet Lights
Finish
White
Style
Contemporary
, Traditional
, Transitional
Option
Energy Efficient
, Energy Star
, Title 24
, Damp Rated
, LED
Voltage
100-120
Lumens
450-800
Kelvin
2501-3000
Location Rating
Damp Rated
Category
Undercabinet
Finish
Satin White
Style
Commodity;Contemporary;Modern;Traditional;Transitional;Utilitarian
Option
Damp Rated
, Energy Efficient
, Energy Star
, Title 24
Family
Hide-a-lite
Voltage
120 VAC
Number of Bulbs
1 Bulbs
Backplate Height
0.12
Backplate Width
8.78
Bulb Hours
50000
Bulb Type
Integrated LED
Introduction Date
01/01/2021
Kelvin
2700;3000;3500;4000;5000
Keyword(s)
light lighting light fixture light fixtures modern light fixture undercabinet light undercabinet lighting recessed lighting functional lighting
Length
9.02
Lumens / Light Output
228
Material
Aluminum
Ship Carton Height
3.62
Ship Carton Length
10.62
Ship Carton Width
1.37
Ship Weight
0.95
Special Features
Application: Combine elegant design with energy-efficient LED light in the Hide-A-Lite Collection 1-Light 9-Inch Satin White Modern LED Linear Undercabinet Light ideal for any bar, closet, garage, kitchen, laundry room, pantry, self-storage, storeroom, uti
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
0.61
Wire Included
6 in
Americans with Disabilities Act
Yes
Backplate Depth
3.02
Bulb Base
Integrated
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Certified Listed Location
Damp Location Listed
Construction Material Main Part
Housing
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Eaton AAL06;IDevices IDEV009;Leviton_Trimatron 6681;Leviton IPI06-1LZ;Leviton 6672;Leviton 6674;Lutron NTEVL-300;Lutron DVELV-300P;Lutron DVCL-253P;Lutron Caseta Wireless;Lutron AYCL-153P;Lutron SCL-153P;Lutron TGCL-153-PH-WH;Lutron MACL-153M
Dimming Protocol
Triac/Forward Phase;ELV/Reverse Phase
Dimming Range
Dims to 10% Brightness
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Painted
Frequency Rating
60 Hz
Grounded Convenience Outlet included
No
JA8
2019
Lamp Type Basic
Solid State
Lamp Wattage
4
Lumens per Watt
57.00
Mount Location
Undercabinet
Post Top Fits Standard
No
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Quick Install Canopy
No
Quick Link Connector
No
Room Type
Bar;Closets;Garage;Kitchen;Laundry;Pantry;Self-storage;Store Rooms;Utility;Work Areas
Safety Rating
cCSAus
Starting Temperature Minimum
-25 °C
Sub Brand
Progress LED
Title 20
No
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Included Items
Bulbs: (1) x 4 Watt Integrated LED
