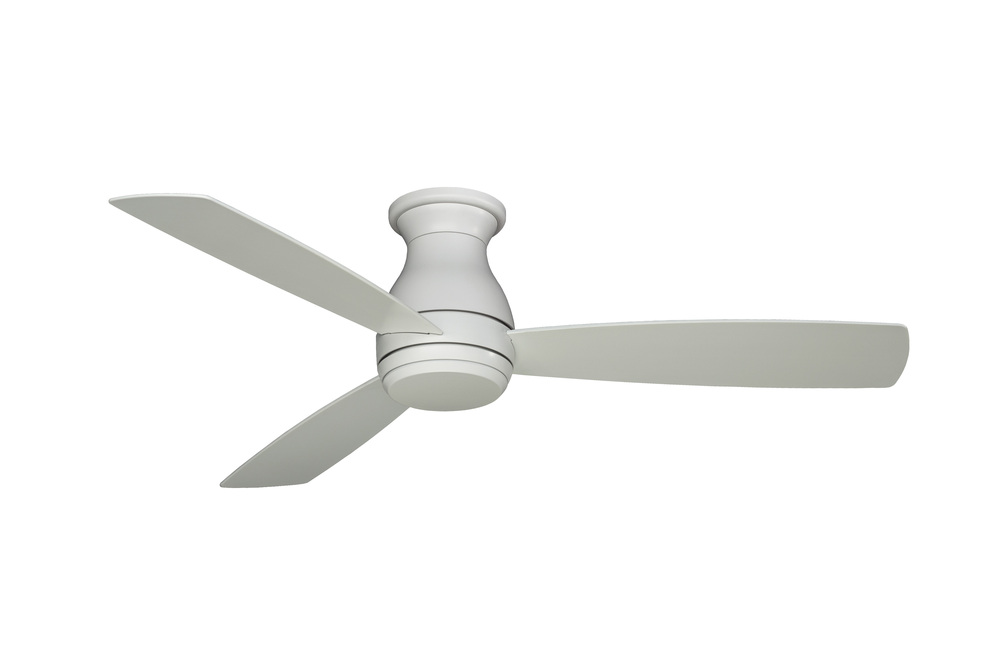

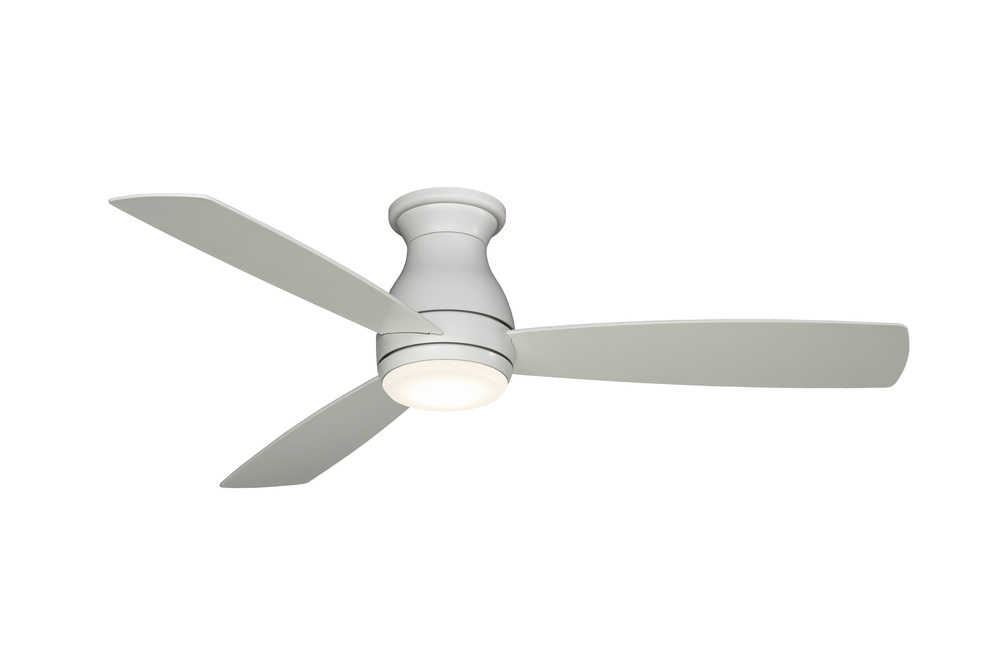

Hugh - 52 inch - MWW with LED Light Kit (K388)
Strong, sturdy, and ready for anything. Hugh is wet rated and offers its users powerful airflow for any indoor or outdoor space in both 44" and 52" inches. Made from metal for durability, Hugh brings cooling with 3 speeds for preference. Integrated into the fan body is a dimmable LED light kit for additional luminance in dark areas. Hugh includes a handheld remote and a light cap with purchase. *Wet Rated for indoor or outdoor use *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
5104 Cubic Feet per Minute
Electricity Rate
52 Watts (excluded lights)
Airflow Efficiency
99 Cubic Feet Per Minute Per Watt
Product Specification
Item #
K388
Dimensions
Height: 11.74"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
K388
Category
Exterior
, Fans
Subcategory
Exterior Fans
, Outdoor Fans
Finish
White
Style
Traditional
Option
Wet Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
3 Blades
Location Rating
Wet Rated
Wattage
18w
Category
Fan-Uni
Finish
Matte White
Option
Wet
Family
Hugh 52
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch
, 3785 CFM on High
, Limited Lifetime Warranty
, Set of (3) 44 or 52 inch Wet Rated blades and 18 watt LED light kit with cover and bulbs included
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
5104
Air Flow Efficiency
99
Amperage
0.43
Blade Finish
Matte White
Blade Pitch
12
Bulb Type
18 Watt LED Module
Canopy
6.77 Dia
Diameter
7.85
Electricity Used
52
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1400
Material
Composite
Motor Fan Speed
3
Motor RPM
171
Motor Size
153 x 20
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10.55
Ship Carton Length
25.2
Ship Carton Width
9.65
Ship Weight
18.69
Sold By
Each
Warranty
Limited Lifetime
Weight
16.53
Airflow Efficiency Low
160
Airflow Efficiency Medium
120
Avg Airflow Efficiency
98
Avg CFM Energy
3392
Avg Energy Use Watts
35
Avg Estimated Yearly Energy Cost
10
Avg Estimated Yearly Energy Cost on HIGH
15
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.77 Dia
Cap Included
Yes
Carton Cubic Feet
1.48
Cartons Per Unit
1
Case Height
10.55
Case Length
25.2
Case Quantity
1
Case Weight Pounds
18.69
Case Width
9.65
CEC Uploaded
Yes
Ceiling To Blade Edge
9.36
Ceiling To Bottom
11.35
, 11.74
CFM Low
2188
CFM Medium
3595
Compatible Controls
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls
CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin
China
CRI
90
Current Draw High
0.43
Current Draw Low
0.22
Current Draw Medium
0.32
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
7.85
Included Control
TR500
Included Control Type
Handheld
Leadwire
11
Light Kit Energy Star
No
Max Watt
52
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM High (VI)
171
RPM Low (II)
83
RPM Medium (IV)
128
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
14
Watts Medium
30
Watts Per Bulb
18
Wet Rated
Yes
Other Details:
- 3 Speed Ac Motor With Reverse Switch
- 3785 Cfm On High
- Limited Lifetime Warranty
- Set Of (3) 44 Or 52 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulbs Included
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Ceiling To Bottom
