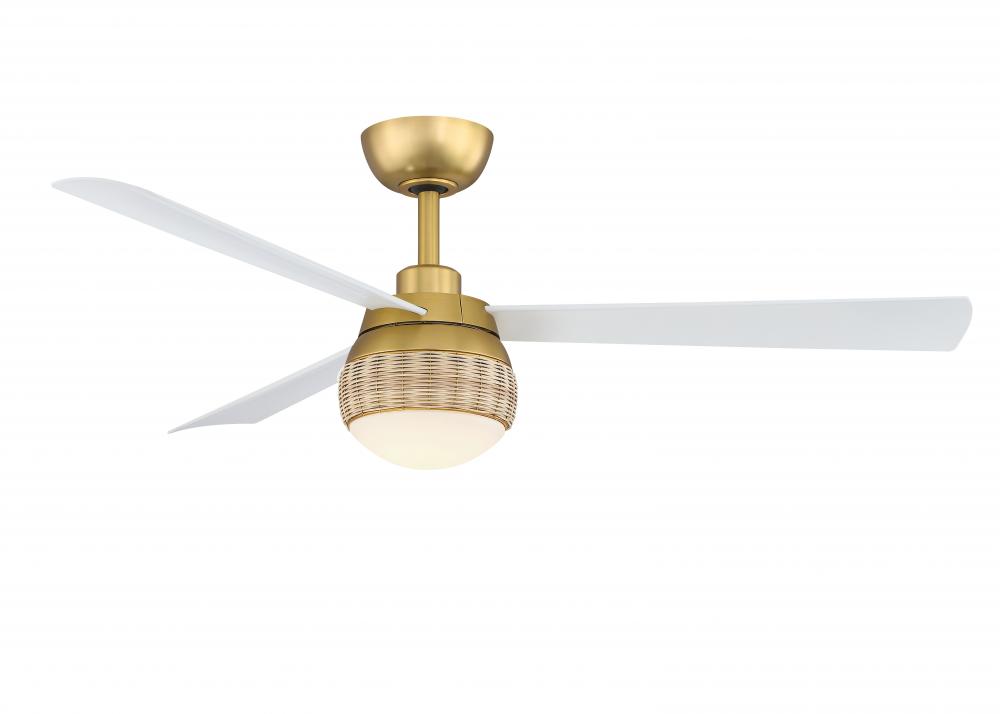

Paget - 52" - BS with MW Blades (K747)
It’s only fitting in Fanimation’s 40th year that we return to the tropics by bringing natural and textural elements to a soft contemporary design giving Paget its own unique personality.
Downloads
Product Specification
Item #
K747
Dimensions
Height: 16.29"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
K747
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Brass
Category
Fan-Uni
Finish
Brushed Satin Brass
Family
Paget
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow CFM
5429
Air Flow Efficiency
97
Blade Finish
Matte White
Blade Pitch
13
Blade Span
52
Bulb Type
LED Module
Canopy
6.5 Dia x 2.58 H
Harmonized Codes
8414.51.3000
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1700
Motor Size
AC 153 X 17
Motor Type
AC
Ship Carton Height
11.34
Ship Carton Length
29.72
Ship Carton Width
10.83
Ship Weight
19.4
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
13.45
Airflow Efficiency Low
184
Airflow Efficiency Medium
126
Avg Airflow Efficiency
110
Avg CFM Energy
4014
Avg Energy Use
36
Avg Estimated Yearly Energy Cost
10
Avg Estimated Yearly Energy Cost on HIGH
16
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Cap Included
No
Carton Cubic Feet
2.1123
Case Height
11.34
Case Length
29.72
Case Quantity
1
Case Weight Pounds
19.4
Case Width
10.83
CEC Uploaded
Yes
Ceiling To Blade Edge
9.7
Ceiling To Bottom (With Light Kit)
16.29
CFM Low
2410
CFM Medium
3903
Country of Origin
China
Current Draw High
0.47
Current Draw Low
0.23
Current Draw Medium
0.35
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star 4
No
Housing Diameter
8.46
Included Control
TR500
Included Control Type
Handheld
Leadwire
54
Light Kit Energy Star 4
No
Location Rating
Damp
Max Ceiling Slope
27
Max Wattage
18 W
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
160
RPM Low
73
RPM Medium
119
Safety Rating
UL Approved
Voltage Cycles
60HZ
Watts High
56
Watts Low
13
Watts Medium
31
Other Details:
- 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
- Damp Rated For Indoor Or Outdoor Use
- Limited Lifetime Warranty
- Set of (3) 52 inch blades with multiple finish options and 18 watt LED light kit with bulb included
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
