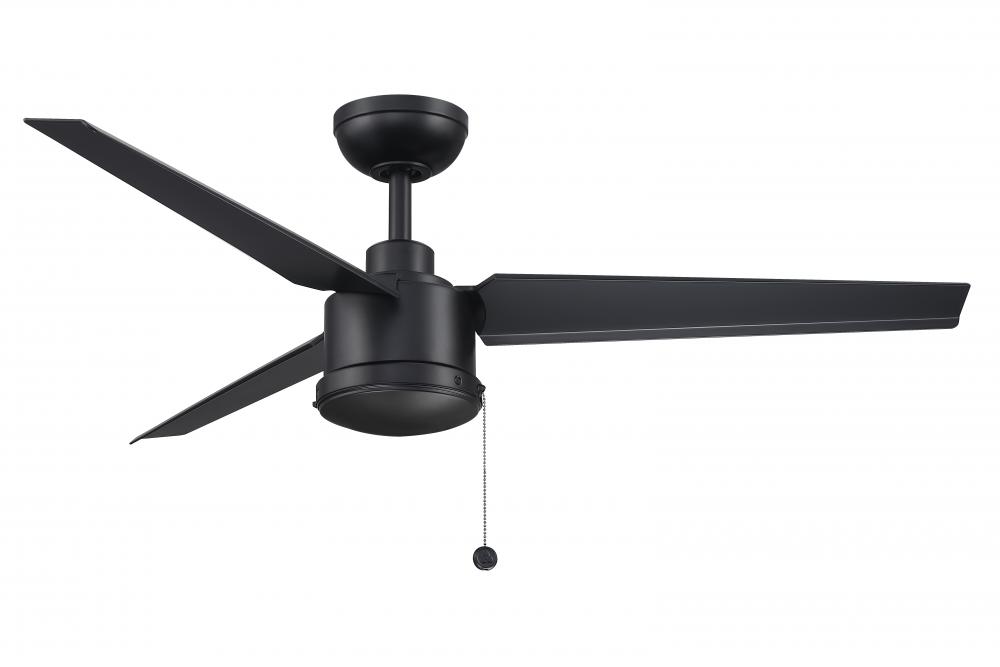

PC/DC - 52 Inch - BL with BL Blades (K65N)
The Fanimation PC/DC Ceiling Fan is one of the newest inspirations, featuring Fanimation's first Pull Chain Ceiling Fan with a DC motor. The PC/DC is an indoor/outdoor 52 inch Ceiling Fan that offers Black, Matte White and Silver wet rated finishes with blades included, as well as an optional LED light kit. The PC/DC Fanimation Ceiling Fan has a look of sophistication and smooth structure, that can be displayed inside or outside the home. *Wet rated for Indoor/Outdoor use *Reverse airflow for multi-season use *Pull Chain motor control
Energy Information at High Speed
Airflow
5664 Cubic Feet per Minute
Electricity Rate
28 Watts (excluded lights)
Airflow Efficiency
201 Cubic Feet Per Minute Per Watt
Product Specification
Item #
K65N
Dimensions
Height: 14.91"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
K65N
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Traditional
Option
Wet Rated
Voltage
10-99
Number of Blades
3 Blades
Location Rating
Wet Rated
Wattage
8w
Category
Fan-Uni
Finish
Black
Option
Wet
Family
Pc/dc
Voltage
120 V
Additional Info
16 speed DC motor with reverse switch, fan and light control
, CHINA
, Energy Star Most Efficient 2022
, Limited Lifetime Motor Warranty
, Pull Chain Control
, Set of (3) 52 inch wet rated blades included with optional 18 watt LED light kit (sold separately)
Air Flow CFM
5664
Air Flow Efficiency
201
Amperage
0.44
Blade Finish
Black
Blade Pitch
13
Blade Span
52
Canopy
6.3 Dia x 2.56 H
Diameter
7.52
Down Rod Included
6
Electricity Used
28
Harmonized Codes
8414.51.3000
Length
52
Light Kit Included
No
Material
Composite
Motor Fan Speed
16
Motor RPM
171
Motor Size
100 X 30
Motor Type
DC
Ship Carton Height
12.2
Ship Carton Length
27.95
Ship Carton Width
9.84
Ship Weight
18.96
Sold By
Each
Warranty
Limited Lifetime
Weight
13.01
Airflow Efficiency Low
902
Airflow Efficiency Medium
449
Avg Airflow Efficiency
202
Avg CFM Energy
3813
Avg Energy Use Watts
19
Avg Estimated Yearly Energy Cost
5
Avg Estimated Yearly Energy Cost on HIGH
8
Blade Finish Method
Painted
Blade Material
Composite
Blade Pitch Degrees
13
Blade Reversible
No
Blade Sweep
52
Canopy Diameter
6.3 Dia
Canopy Height
2.56 H
Cap Included
No
Carton Cubic Feet
1.94
Case Height
12.2
Case Length
27.95
Case Quantity
1
Case Weight Pounds
18.96
Case Width
9.84
CEC Uploaded
Yes
Ceiling To Blade Edge
10.24
Ceiling To Bottom
14.91
CFM Low
1641
CFM Medium
3693
Compatible Accessories
CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52
Country of Origin
China
Current Draw High
0.44
Current Draw Low
0.06
Current Draw Medium
0.16
DOE Classification
LSSD
DOEFTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
7.52
Included Control Type
Pull Chain
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
28
Maximum Slope Degree
27
Motor Finish Method
Painted
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM High (VI)
171
RPM Low (II)
54
RPM Medium (IV)
114
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
2
Watts Medium
8
Wet Rated
Yes
Other Details:
- 3 Speed Dc Motor With Reverse Switch, Fan And Light Control
- Energy Star Most Efficient 2022
- Limited Lifetime Motor Warranty
- Pull Chain Control
- Set Of (3) 52 Inch Wet Rated Blades Included With Optional 18 Watt Led Light Kit (sold Separately)
