Phase 2.2 LED Collection 36" LED Linear Bath & Vanity (AM5U7)

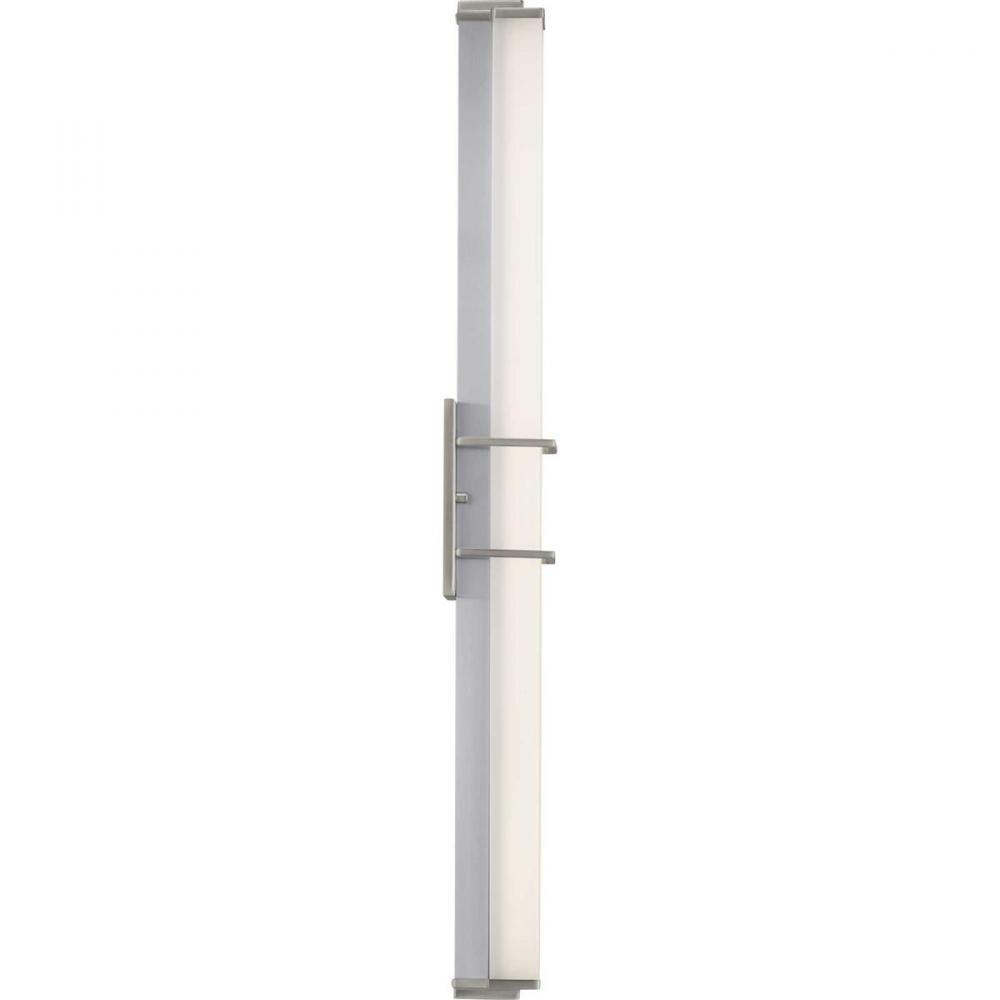

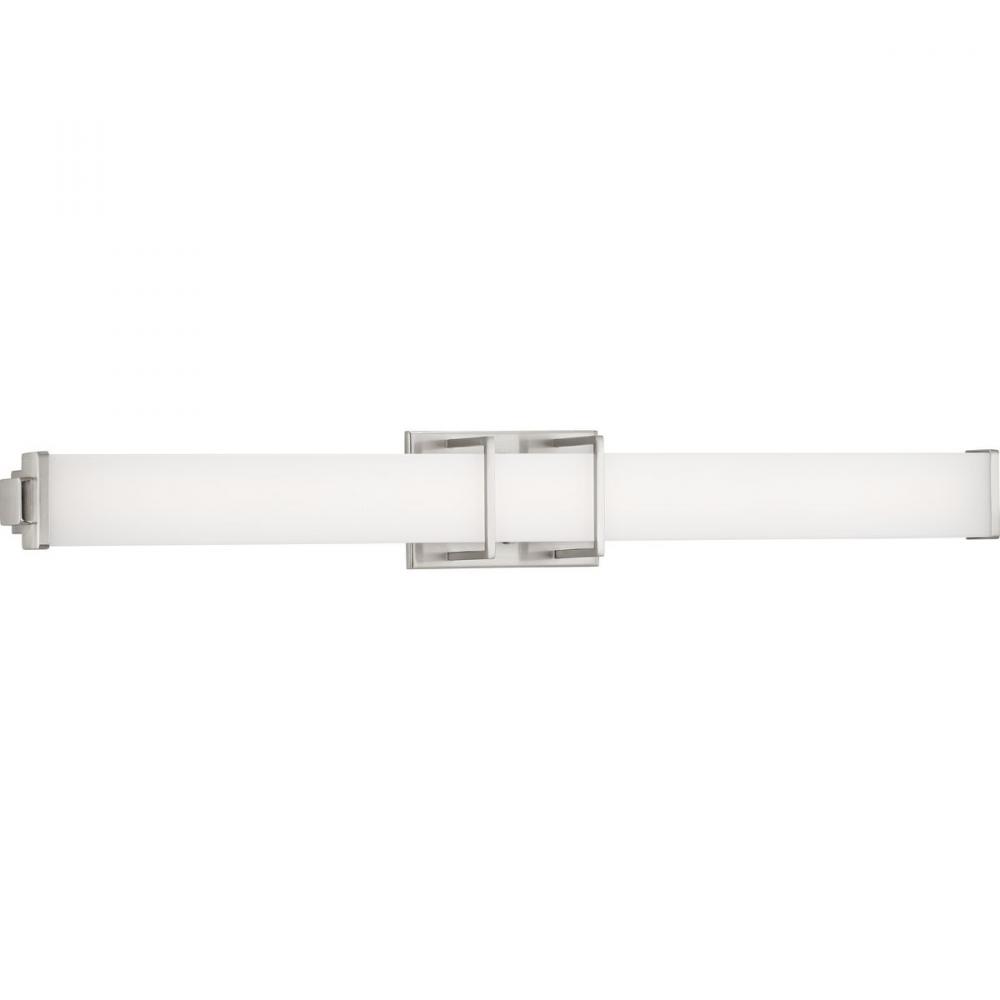

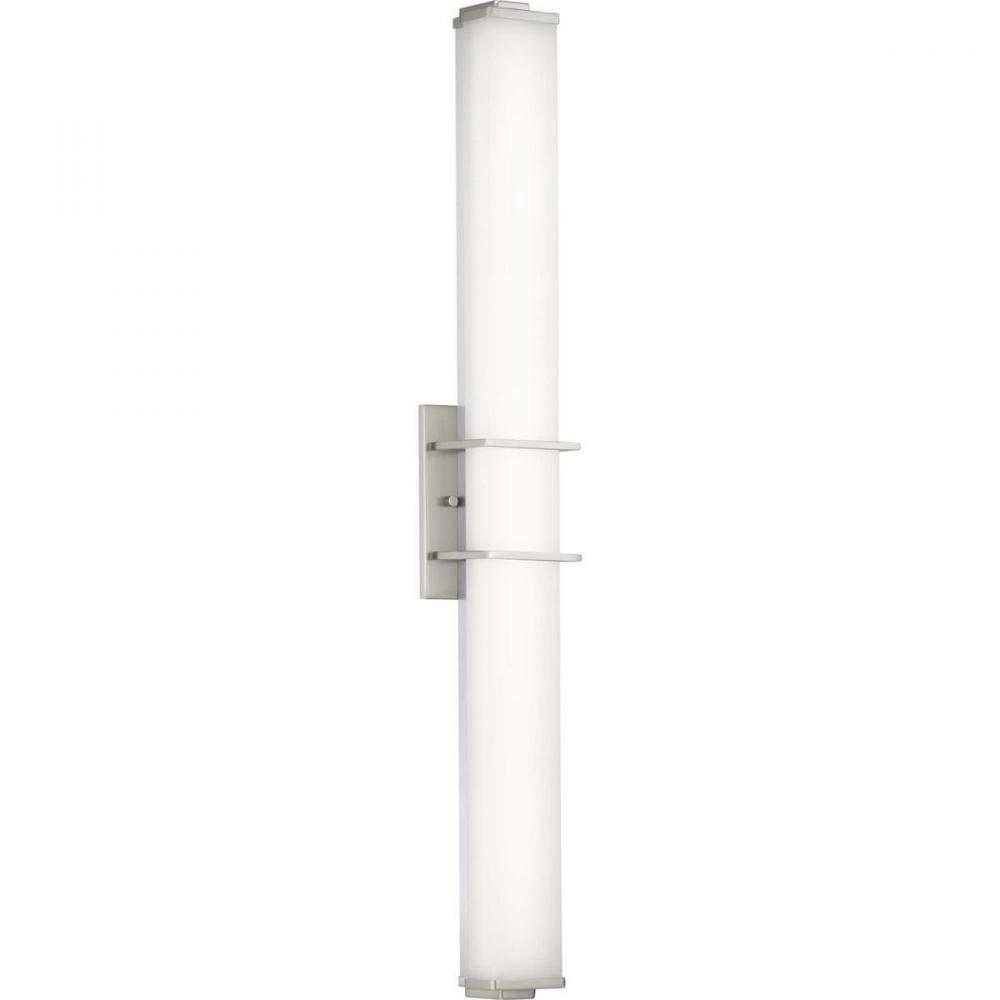

Phase 2.2 features a thin, acrylic shade framed by architectural accents in Brushed Nickel complete the design. This specially designed 36in. linear bath fixture delivers ambient light to surfaces free of shadows. Ideal for residential, commercial and multi-family applications. An integrated LED source provides energy and cost savings benefits. Can be installed vertically or horizontally.
Downloads
Product Specification
Item #
AM5U7
Dimensions
Height: 4.75"
Width: 4.00"
Length: 36.00"
Additional product details
Internal #
AM5U7
Category
Bathroom Fixtures
Subcategory
Vanity Lights
Finish
Nickel
Style
Modern
Option
Energy Efficient
, Energy Star
, Title 24
, Damp Rated
, LED
, Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Damp Rated
Category
Bath & Vanity
Finish
Brushed Nickel
Style
Modern
Option
Damp Rated
, Energy Efficient
, Energy Star
, Title 20
, Title 24
Family
Phase 2.2 LED
Glass
White
Voltage
120
Number of Bulbs
1 Bulbs
Backplate Height
4.75
Backplate Width
7.06
Bulb Hours
50000
Bulb Type
Integrated LED
Height To Center of Outlet
2.38
Introduction Date
01/01/2019
Kelvin
3000
Length
36.00
Lumens / Light Output
2400
Material
Aluminum
Ship Carton Height
5.12
Ship Carton Length
38.50
Ship Carton Width
6.75
Ship Weight
3.75
Special Features
Ideal for a bathroom;Perfect for modern style settings;Beautiful brushed nickel finish;Crisp white acrylic shade;Fixture can mount horizontal and vertical;Includes 1 integrated LED (34 W), 2400 lumens, 3000 K, 90 CRI, dimmable;Measures 36-inch width by 4.
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
4.72
Wire Included
6 in
Americans with Disabilities Act
Yes
Backplate Depth
0.38
Bulb Base
Integrated
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
Yes
Canopy Shape
Rectangular
Certified Listed Location
Damp Location Listed
Construction Material Main Part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta;IDevices_IDEV0009;Lutron_Ariadni AYCL-153P;Lutron_Ariadni AYLV-600P;Leviton_AWRMG-EAW
Dimming Protocol
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Plated
Frequency Rating
60 Hz
Glass Depth
1.75
Glass Height
3
Glass Shape
Diffuser
Glass Width
35.125
JA8
2016
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
34
Lens Shade Material
Acrylic
Lumens per Watt
71.00
Mount Location
Wall
MTO
No
Operating Temperature Celcius Max
30°C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Bathroom
Safety Rating
cETLus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Included Items
Bulbs: (1) x 34 Watt Integrated LED
