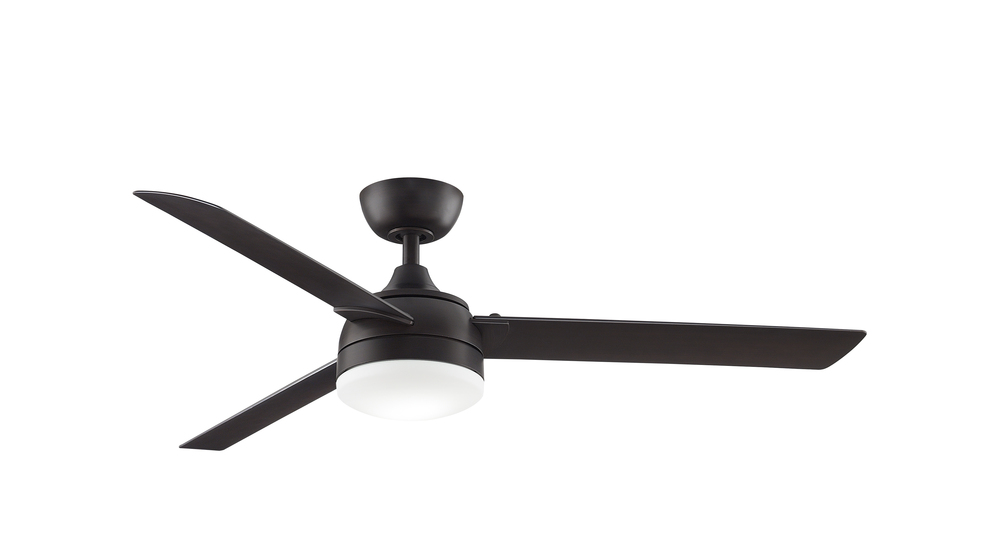

Xeno - 56 inch - DZW with DWA Blades -220v (G7H2)
Xeno by Fanimation is a timeless piece that will brighten up any room and inevitably grab the attention of those in its presence. This fan is as easy to use as it is to look at and can be easily controlled at the touch of a button. Xeno is damp location rated for indoor or outdoor use and can operate on three forward and three reverse speeds, for multi-season airflow. *Compatible with most smart home devices (required control sold separately)
Energy Information at High Speed
Airflow
7156 Cubic Feet per Minute
Electricity Rate
52 Watts (excluded lights)
Airflow Efficiency
138 Cubic Feet Per Minute Per Watt
Product Specification
Item #
G7H2
Dimensions
Height: 14.54"
Width: 56.00"
Length: 56.00"
Additional product details
Internal #
G7H2
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Bronze
Style
Traditional
Option
LED
Glass Finish or Style
Frosted
, Opal
Number of Blades
3 Blades
Subfinish
Dark Bronze
Category
Fan-Uni
Finish
Dark Bronze
Family
Xeno Wet
Glass
Opal Frosted
Voltage
240 V
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch, light controls and sleep timer features
, 6605 CFM on High
, Limited Lifetime Motor Warranty
, Set of 3 composite 56 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
7156
Air Flow Efficiency
138
Amperage
0.23
Blade Finish
Dark Bronze
Blade Pitch
14
Blade Span
56
Bulb Type
18 Watt LED Module
Canopy
6.58 Dia x 2.62 H
Diameter
9.09
Down Rod Included
4.5
Electricity Used
52
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
56
Light Kit Included
Yes
Lumens / Light Output
1460
Material
Composite
Motor Fan Speed
3
Motor RPM
185
Motor Size
188 x 25
Motor Type
AC
Remote Control Included
C6WH-6729-220
Ship Carton Height
13.66
Ship Carton Length
27.48
Ship Carton Width
13.62
Ship Weight
27.38
Sold By
Each
Switch/Control Included
Yes, C6WH-6729-220
Warranty
Limited Lifetime
Weight
23.81
Airflow Efficiency Low
272
Airflow Efficiency Medium
186
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
56
Bulb Base
Connector Pin
Bulb CRI
80
Bulb Wattage
18
Canopy Diameter
6.58 Dia
Canopy Height
2.62 H
Cap Included
No
Carton Cubic Feet
2.96
Cartons Per Unit
1
Case Height
13.66
Case Length
27.48
Case Quantity
1
Case Weight Pounds
27.39
Case Width
13.62
CEC Uploaded
No
Ceiling To Blade Edge
10.24
Ceiling To Bottom
14.54
Ceiling to Bottom No LK
13.2
CFM Low
3097
CFM Medium
5236
Compatible Accessories
CCK8002DZW, DR1-CPDZ, DR1SS-12DZW, DR1SS-18DZW, DR1SS-24DZW, DR1SS-36DZW, DR1SS-48DZW, DR1SS-60DZW, DR1SS-72DZW, SCB1-52
Compatible Controls
BTCR9-220, CRL4WH-220
Country of Origin
China
CRI
80
Current Draw High
0.23
Current Draw Low
0.11
Current Draw Medium
0.17
DOE-FTC Uploaded
No
DOEFTC Uploaded
No
Downrod Length
4.5
Exempt from DOE Procedure
Yes
Housing Diameter
9.09
Included Control
C6WH-6729-220
Included Control Type
Wall
IP Rating
IP21
Leadwire
80
Max Ceiling Slope
27
Max Watt
52
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
185
RPM Low (II)
79
RPM Medium (IV)
130
Safety Rating
TUV Approved
Voltage Cycles
50 hz
Watts Low
11
Watts Medium
28
Watts Per Bulb
18
Other Details:
- 3 Speed Ac Motor With Reverse Switch, Light Controls And Sleep Timer Features
- 6605 Cfm On High
- Limited Lifetime Motor Warranty
- Set Of 3 Composite 56 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulb Included
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
